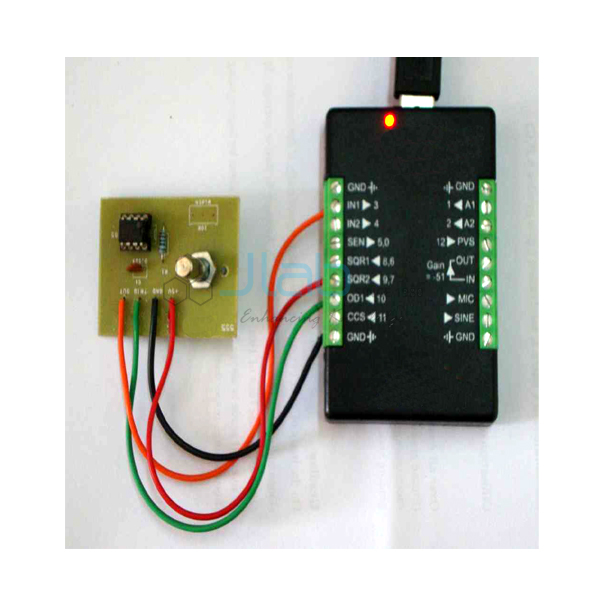

Monostable Multivibrator using IC 555
Product Code : JA-SOM-1149
The Monostable Multivibrator using IC 555 apparatus (SKU JA-SOM-1149) is used to study the one-shot action of a 555 timer: a trigger pulse makes the output go high for a set time, fixed by the timing resistance and capacitance, before it returns to its stable state. The listing covers the monostable circuit and its applications. A power supply is built in, and the apparatus is supplied with a set of patch cords and a user's manual.
Specifications
The listing gives these details:
| Product | Monostable Multivibrator using IC 555 |
| SKU | JA-SOM-1149 |
| IC | 555 timer |
| Circuit | Monostable multivibrator and its applications |
| Power supply | In-built |
| Supplied with | Set of patch cords, user's manual |
Scope of supply and ordering
Patch cords and the user's manual come with each unit.
Frequently asked questions
What does the IC 555 monostable apparatus demonstrate?
The one-shot action of a 555 timer, where each trigger gives one output pulse of set width.
What comes with the apparatus?
A set of patch cords and a user's manual; the power supply is built in.
