Laminar Flow Cabinet Digital Manufacturer,Supplier and Exporter in India

Product Code : JA-CAS-2270
jaincolab is a leading Laminar Flow Cabinet Digital Manufacturer,and suppliers in India, Laminar Flow Cabinet Digital Manufacturer,and suppliers in South Africa, Laminar Flow Cabinet Digital Algeria (Algiers), Laminar Flow Cabinet Digital Angola (Luanda), Laminar Flow Cabinet Digital Argentina (Buenos Aires), Laminar Flow Cabinet Digital Armenia (Yerevan), Laminar Flow Cabinet Digital Australia (Canberra), Laminar Flow Cabinet Digital Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

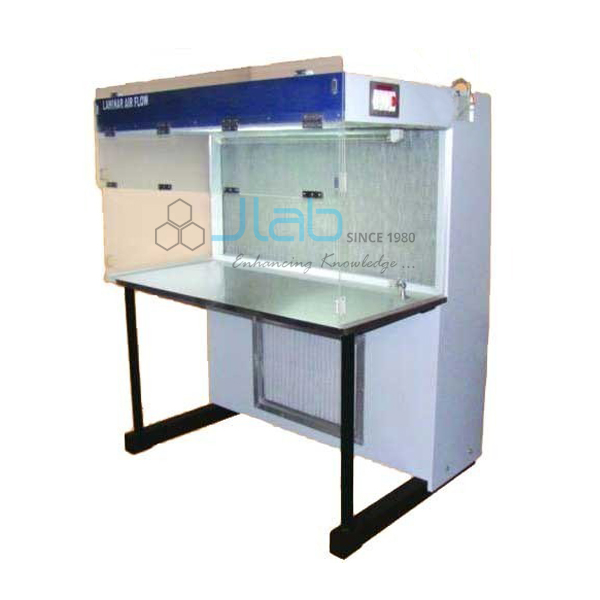

Laminar Air Flow Cabinet

Micro-Controller based : Menu Controlled with LCD Display. Refer first page for Menu functions.

Operation Laminar Airflow Velocity : Average of 0.45 m/s or 90 fpm measured 150mm/6” filter face for 45 air changes/min. in work zone.

Re-circulation : 70% of total.

Air Velocity Exhaust : 30% of total Air Velocity.

Air Cleanliness in Working Area : meets or exceeds US Federal Standard 209E Class 100.

Main & Exhaust Filters : HEPA (Minipleat Optional).

HEPA Filters : Rated for min. 99.97% efficiency at 0.3 micron particle size.

Pre-Filters : Low pressure drop. High efficiency, 10 microns.

UV Sterilization : In work chamber & Exhaust Plenum. Emission in the germicidal band UV-Cm 254mm.

Alarm : Door unsafe position.

Noise Level : <58 dbA at operator point.
