Kettle Type Reboiler
Product Code : JA-AM-5939

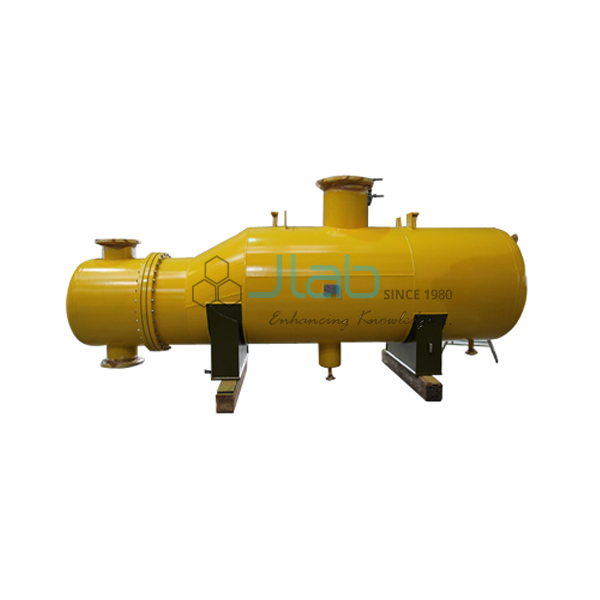

The Kettle Type Reboiler (SKU JA-AM-5939) is a training model of the reboiler used at the base of a distillation column, supplied by JaincoLab for process engineering teaching. In a kettle reboiler, steam flows through the tube bundle and leaves as condensate, while the liquid from the bottom of the tower, the bottoms, flows through the shell side and is partly vaporised. The bottoms either have to be pumped into the kettle or enter under their own liquid head.
Specifications
The listing describes the kettle reboiler principle, steam in the tubes and bottoms liquid on the shell side, but gives no model dimensions or materials, which are confirmed on the quotation.
| Product | Kettle Type Reboiler |
| SKU | JA-AM-5939 |
| Equipment represented | Kettle type reboiler |
| Tube side | Steam, leaving as condensate |
| Shell side | Column bottoms liquid |
| Liquid feed | Pumped in, or by sufficient liquid head |
Applications of the kettle reboiler model
The model is used to explain how heat is supplied to a distillation column: trainees follow steam through the bundle and the bottoms through the shell, and learn why the vapour space above the bundle separates vapour from liquid.
- Distillation and heat transfer lessons in chemical engineering
- Refinery and petrochemical operator training
- Process plant maintenance training
- Comparison with the vertical thermosyphon reboiler model
Scope of supply
The listing covers one Kettle Type Reboiler as described above, supplied by JaincoLab. Its scale, dimensions, materials and whether it is sectioned or dismantlable are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The minimum order, lead time and packing of the Kettle Type Reboiler are set out on each quotation to suit the quantity and the delivery destination. JaincoLab quotes individual models and complete sets for colleges, schools and education projects.
Frequently asked questions
What flows through the tubes of a kettle reboiler?
Steam flows through the tube bundle and leaves as condensate.
What flows on the shell side?
The liquid from the bottom of the tower, called the bottoms.
Is it a working unit?
It is listed as a training model; whether it is static, sectioned or operable is confirmed on the quotation.
What should a quotation request include?
Send the SKU JA-AM-5939, the quantity and the delivery destination.
