Instantaneous Gas Heater
Product Code : JA-ELA-5446

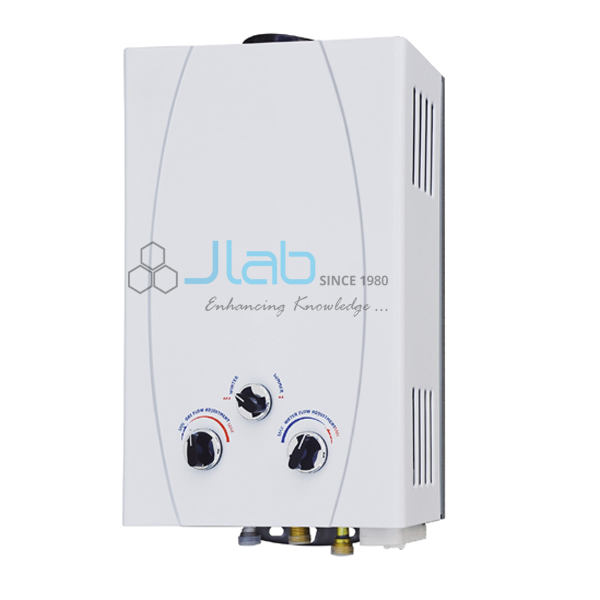

The Instantaneous Gas Heater (SKU JA-ELA-5446) is a training model of an instantaneous gas water heater, supplied by JaincoLab, that runs on air rather than gas. Its heat exchanger has been removed so the internal components can be seen clearly, and a diaphragm air pump with pressure regulator supplies air at the correct admission pressure. A PLC simulates lighting the pilot, the thermocouple flame safeguard and the temperature cut-out, and an array of LEDs represents the burner flames.
Specifications
The trainer needs a water supply; air comes from its own diaphragm pump, and its PLC is programmed with 12 simulated faults.
| Product | Instantaneous Gas Heater |
| SKU | JA-ELA-5446 |
| Operating medium | Air, from a diaphragm pump with pressure regulator |
| Cut-away | Heat exchanger removed to show internal components |
| Simulated by PLC | Pilot lighting, thermocouple flame safeguard, temperature cut-out |
| Fault simulation | 12 faults programmed in the PLC |
| Flame display | Array of LEDs |
| Services | Water supply required |
Training topics
Running the trainer on air lets gas-appliance faults be practised in a classroom without a live gas supply.
- Internal layout of an instantaneous gas water heater
- Pilot ignition and thermocouple flame supervision
- Temperature cut-out operation
- Diagnosing the 12 PLC-simulated faults
Scope of supply and ordering
The listing covers the trainer as described; water connection details, electrical supply, quantity and lead time are confirmed on the quotation.
Frequently asked questions
Is gas needed to run the trainer?
No. It is operated with air from a diaphragm pump with pressure regulator; a water supply is required.
How many faults can be simulated?
The PLC is programmed to simulate 12 different faults.
How are the flames shown?
By an array of LEDs.
Related products
- Training Panel Function of Gas Heater
- Domestic Gas Supply Training Panel
- Demo Unit Gas Burner
- Domestic Water Heating System
Gas appliance trainers are listed in the educational laboratory apparatus range.
Request a quote
For the Instantaneous Gas Heater trainer (JA-ELA-5446), send your enquiry via the contact page. Buying under a laboratory tender? Use our tenders page.
