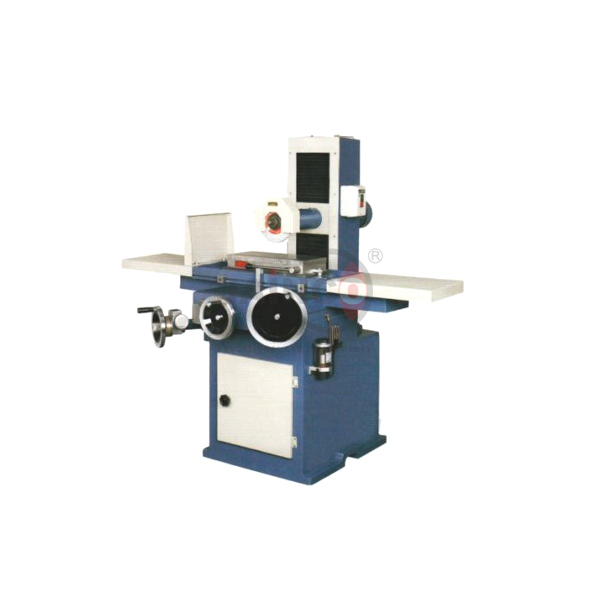

High Precision Surface Grinder
Product Code : JA-WEAWLM-8730
The surface grinder is a precision grinding machine for producing flat surfaces on metal parts in machine shop training. It has a 225 x 450 mm table, 275 mm maximum height from table to wheel, a 200 x 13 x 31.75 mm grinding wheel at 2800 rpm, 0.01 mm vertical feed graduation and 0.05 mm crossfeed graduation, with a 0.75 kW (1 hp) motor recommended (SKU JA-WEAWLM-8730).
Specifications
Listed specification:
| Product | High Precision Surface Grinder |
| SKU | JA-WEAWLM-8730 |
| Table working surface | 225 x 450 mm |
| Maximum height, table to wheel | 275 mm |
| Grinding wheel (dia x width x bore) | 200 x 13 x 31.75 mm |
| Spindle speed | 2800 rpm |
| Vertical feed graduation | 0.01 mm |
| Crossfeed graduation | 0.05 mm |
| Motor recommended | 0.75 kW / 1 hp |
| Machine weight | 800 kg approx. |
Scope of supply and ordering
The listing covers one surface grinder, supplied by JaincoLab.
Frequently asked questions
What size of work can it take?
The table working surface is 225 x 450 mm, with up to 275 mm between the table and the grinding wheel.
What grinding wheel does it use?
A 200 x 13 x 31.75 mm wheel running at 2800 rpm.
