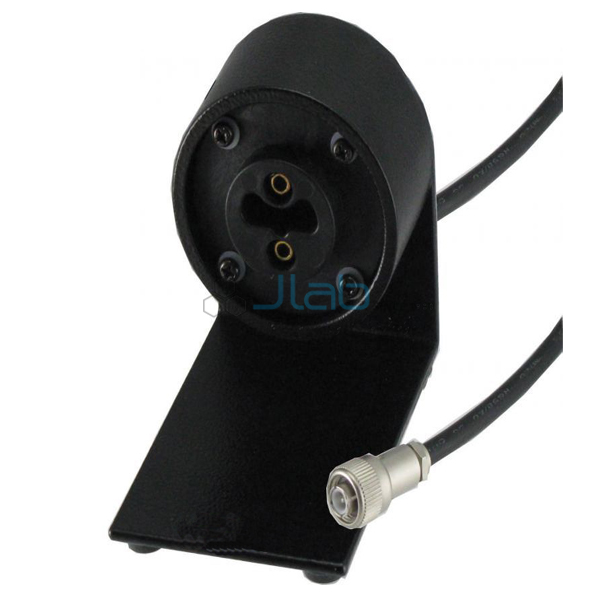

Geiger Muller Tube Holder
Product Code : JA-APE-7289
The Geiger Muller Tube Holder (SKU JA-APE-7289) is an aluminium housing that holds a GM tube and connects it to a scaler timer for radioactivity measurements. A 2.2 megohm stabilising resistor is wired inside in series with the anode connection, and the holder connects through a 1 m coaxial lead ending in a standard P.E.T. connector. This Geiger Muller tube holder is designed for use with a scaler timer in school and college nuclear physics practicals.
Specifications
The holder is an aluminium box of 58 x 33 mm (diameter x depth) housing the GM tube socket, with a 2.2 megohm stabilising resistor in series with the anode and a 1 m coaxial lead terminated in a P.E.T. connector.
| Product | Geiger Muller Tube Holder |
| SKU | JA-APE-7289 |
| Housing | Aluminium box, 58 x 33 mm (diameter x depth) |
| Tube socket | Houses the GM tube socket |
| Anode resistor | 2.2 megohm stabilising resistor, wired internally in series with the anode connection |
| Lead | 1 m coaxial connecting lead |
| Connector | Standard P.E.T. connector |
| For use with | Scaler timer |
| GM tubes | Available on request |
Applications of the Geiger Muller tube holder
The holder mounts the GM tube securely at a fixed position and provides the anode resistor and screened lead needed to run it from a scaler timer, so count-rate measurements can be repeated with the tube held steady.
- Mounting a GM tube for background and source count measurements
- Absorption experiments with alpha, beta and gamma sources
- Inverse-square law measurements at set source distances
- Half-life experiments with a protactinium generator
- Radioactivity practicals in senior-secondary, B.Sc and M.Sc physics
Scope of supply and ordering
The listing covers the aluminium GM tube holder with internal anode resistor and 1 m coaxial lead with P.E.T. connector. GM tubes are available on request, and the scaler timer is a separate item.
Frequently asked questions
What is the GM tube holder used with?
It is designed for use with a scaler timer, connected through a 1 m coaxial lead with a P.E.T. connector.
Is a stabilising resistor fitted?
Yes. A 2.2 megohm stabilising resistor is wired internally in series with the anode connection.
Is a GM tube included?
GM tubes are available on request.
Related products
See the Atomic Physics Equipment range from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Geiger Muller Tube Holder, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
