Free and Forced Vortex

Free and Forced Vortex

Product Code : JA-FMAHLE-9945

Free and Forced Vortex
Description:-
The forced vortex is induced by a paddle in the base of the cylinder which is rotated by jets of water.
The profile of the forced vortex is determined using a series of depth gauges.
Velocity at any point in the free or forced vortices may be measured using the appropriate pitot tube supplied.

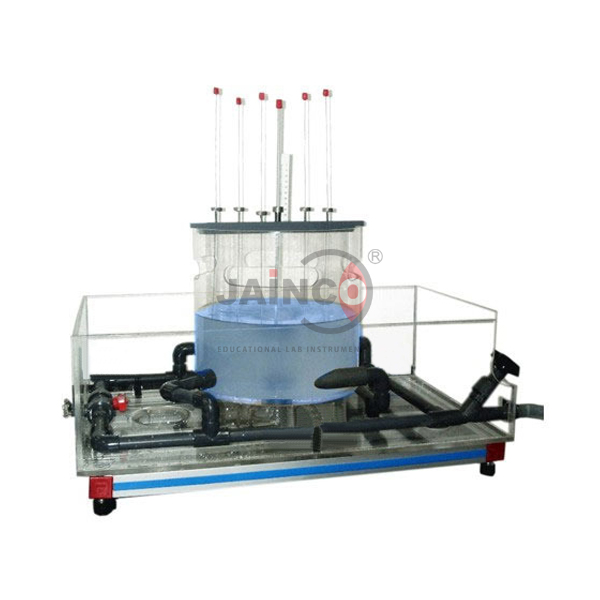

The apparatus includes a clear acrylic cylinder on a plinth developed to produce & measure free and forced vortices.
The free vortex is generated by water discharging through an interchangeable orifice in the base of the cylinder and the resulting profile is measured using a combined caliper and depth scale.
Dye crystals may be used to demonstrate secondary flow at the base of the free vortex.

Specification:-
Plexiglass tank on powder coated base plate, complete with pipework, fittings and connections, as well as measuring device with vertical/radial scale.
Experimental set-up to study the formation of vortices in liquids, for use.
630 x 400 x 675mm (l x w x h), 18kg.
Vortex generated via outlet inserts or impeller with 3 blades.

Technical Data:-
4 outlets: diameter: 8, 12, 16, 24mm
Tank: diameter: 250mm, height: 190mm
