Forced Air Gas Burner Training Panel

Forced Air Gas Burner Training Panel

Product Code : JA-ELA-5445

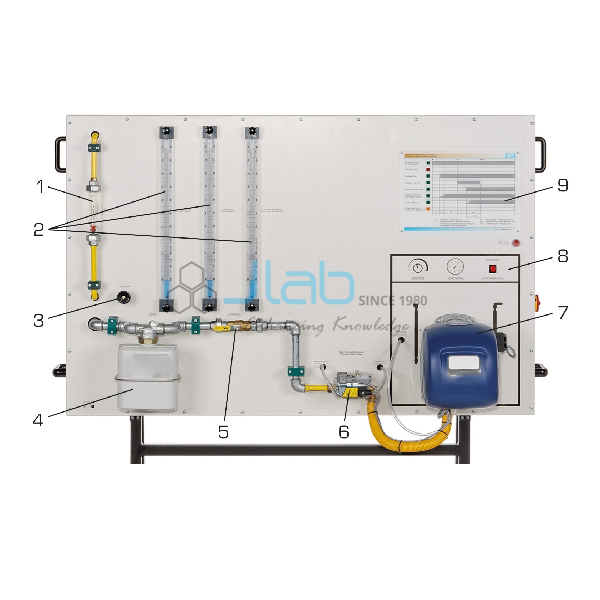

Forced Air Gas Burner Training Panel
Being a prominent manufacturer and supplier of various hi-tech instruments, we are engaged in offering Forced Air Gas Burner Training Panel.
The burner function is simulated using air making it possible to use the unit in training rooms without hazard.
The elements for a gas controlled system are combined into one compact fitting.
Features:-
Diaphragm pump for pressure generation, pumping medium air
Hazard-free operation of the burner with air
Simulation of the operation of a gas burner
Display of the most important operating pressures on single tube manometers
Indication of burner operation using a flickering light
Monitoring of burner operation using flame safeguard
Practical nominal load adjustment
Technical specification:-
Gas burner rating class :-  13KW to 28kW
Gas pressure controller admission pressure :-  0,4bar
Outlet pressure:-  0,04bar
Diaphragm pump power consumption :-  70W
Max. flow rate:- 70L/min at  230mbar
