Fixed Tube Sheet Multi Pass
Product Code : JA-AM-5937

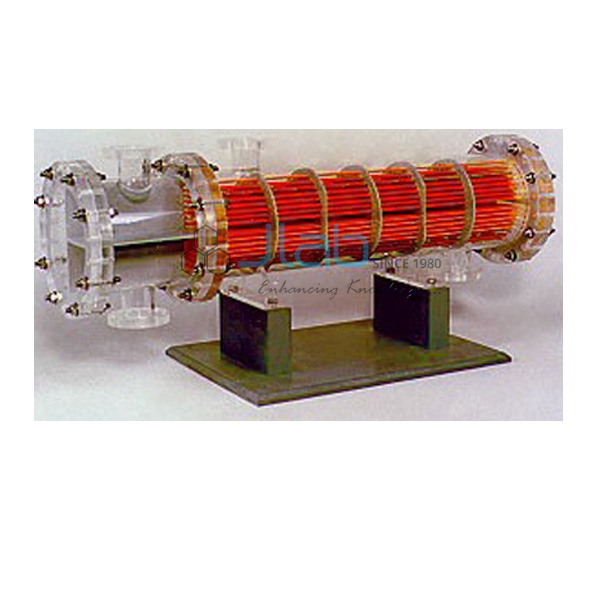

The Fixed Tube Sheet Multi Pass (SKU JA-AM-5937) is a scale model of a multi-pass fixed tube sheet heat exchanger, supplied by JaincoLab for training in the operation and maintenance of industrial heat exchangers. The model has a clear acrylic shell so the tube bundle and baffles can be seen, and it can be dismantled completely, which lets trainees follow the flow path and practise the order of assembly.
Specifications
The model is a to-scale replica of a multi-pass fixed tube sheet heat exchanger with a clear acrylic shell and can be completely disassembled; its scale and dimensions are confirmed on the quotation.
| Product | Fixed Tube Sheet Multi Pass |
| SKU | JA-AM-5937 |
| Type | Multi-pass fixed tube sheet heat exchanger |
| Model | To-scale replica |
| Shell | Clear acrylic |
| Assembly | Completely dismantlable |
Applications of the heat exchanger model
The model is used to teach how a shell-and-tube exchanger works and how it is maintained: trainees trace the multi-pass tube-side flow, identify tube sheets and baffles, and practise dismantling and reassembly.
- Process plant operator and maintenance training
- Chemical and mechanical engineering classes on heat transfer
- Refinery and petrochemical training centres
- Polytechnic process-technology courses
Scope of supply
The listing covers one Fixed Tube Sheet Multi Pass as described above, supplied by JaincoLab. Scale and dimensions are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing for the Fixed Tube Sheet Multi Pass are confirmed on each quotation for the quantity ordered and the delivery destination. Single classroom units, sets for several institutions and bulk tender quantities are all quoted by JaincoLab.
Frequently asked questions
What does the model represent?
A multi-pass fixed tube sheet heat exchanger.
Can it be taken apart?
Yes. It can be completely disassembled.
Can the inside be seen?
Yes. The shell is clear acrylic.
What should a quotation request include?
Send the SKU JA-AM-5937, the quantity and the delivery destination.
Related products
See every model in the anatomical models equipment range, or the wider range of anatomical models from JaincoLab.
Request a quote
To order the Fixed Tube Sheet Multi Pass, send the quantity and delivery destination through the JaincoLab contact page or email [email protected].
