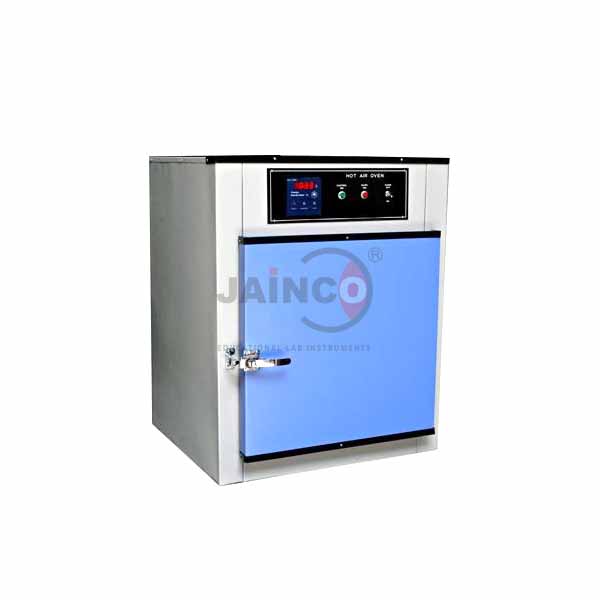

Drying Oven
Product Code : JA-CL-8859
The drying oven is a 225-litre forced-air oven for drying large quantities of aggregate and soil samples, with a temperature range of 50 to 300 °C. A microcomputer PID controller with digital display and timer sets the temperature, and a blower fan circulates hot air through the chamber (SKU JA-CL-8859).
Specifications
Oven specification from the listing:
| Product | Drying Oven |
| SKU | JA-CL-8859 |
| Capacity | 225 litres |
| Temperature range | 50 to 300 °C |
| Temperature resolution | 0.1 °C |
| Temperature fluctuation | ±0.75 °C |
| Heater power | 2.5 kW |
| Timer range | 1 to 9999 min |
| Controller | Microcomputer PID with digital display, timer and temperature control protection |
| Air circulation | Blower fan and air channels; blast and exhaust adjustable on the control panel |
| Interior | Stainless steel, argon-arc welded |
| Exterior | Steel sheet |
| Door | Silicone gasket and transparent thermal glass window |
| Shelves | 3, with 4 shelf positions |
Uses in the concrete and soil lab
- Drying large quantities of aggregate samples
- Drying large quantities of soil samples
Scope of supply and ordering
The listing covers one 225-litre drying oven with three shelves, supplied by JaincoLab.
Frequently asked questions
What temperature range does the oven cover?
50 to 300 °C, with 0.1 °C resolution and ±0.75 °C fluctuation.
How many shelves are fitted?
Three shelves, with four shelf positions.
Can the samples be seen during drying?
Yes, the door has a transparent thermal glass window and a silicone gasket.
