Dipole Meter
Product Code : JA-CE-8025

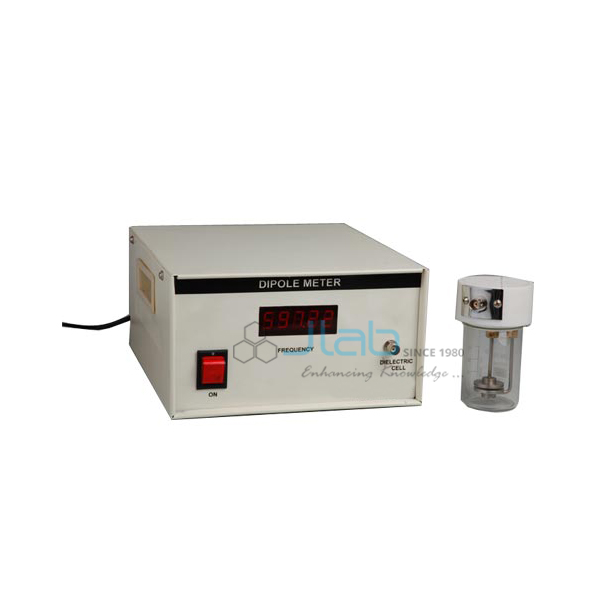

The Dipole Meter (SKU JA-CE-8025) is a physical chemistry instrument for measuring the dielectric constant of non-aqueous, non-polar solutions at different concentrations, from which the dipole moment of a polar solute such as nitrobenzene can be calculated. The main unit combines a frequency counter, a stabilised audio oscillator and the measuring circuitry. This dipole moment apparatus is used in M.Sc. and B.Sc. physical chemistry laboratories, and JaincoLab supplies it with a stainless steel dielectric cell and water-jacket attachment.
Specifications
The main unit contains a frequency counter, an audio oscillator and electronic circuitry; the dielectric cell is a stainless steel assembly with a PTFE top and BNC connector, used with a 100 ml beaker, and an attachment circulates water from an external bath so readings can be taken at a controlled temperature.
| Product | Dipole Meter |
| SKU | JA-CE-8025 |
| Objective | Dielectric constant of non-aqueous liquids at different concentrations |
| Main unit | Frequency counter, stabilised audio oscillator, electronic circuitry |
| Dielectric cell | Stainless steel assembly, PTFE top, BNC connector |
| Beaker | 100 ml |
| Temperature control | Attachment for water circulation from an external bath |
| Standardisation | Against a reference liquid of known dielectric constant |
Experiments with the dipole meter
Students first standardise the cell with a liquid of known dielectric constant, then measure a series of dilute solutions of a polar compound in a non-polar solvent; plotting dielectric constant against concentration gives the data needed to calculate the dipole moment.
- Dipole moment of nitrobenzene or similar solutes in a non-polar solvent
- Dielectric constant of pure non-polar liquids
- Effect of concentration on dielectric constant
- M.Sc. and B.Sc. physical chemistry practicals
Scope of supply and ordering
Supply covers the main unit, stainless steel dielectric cell with PTFE top and BNC connector, a 100 ml beaker and the water-circulation attachment. The external water bath, reference liquids, spares and quantities are confirmed on the quotation.
Frequently asked questions
What does the dipole meter measure?
The dielectric constant of non-aqueous liquids at different concentrations, used to calculate dipole moment.
What is the dielectric cell made of?
Stainless steel, with a PTFE top and a BNC connector.
Is a water bath included?
No; an attachment is provided to circulate water from an external bath, which can be quoted separately.
How is the instrument standardised?
Against a reference liquid of known dielectric constant.
