Diode Valve Characteristics Apparatus
Product Code : JA-COVT-1071

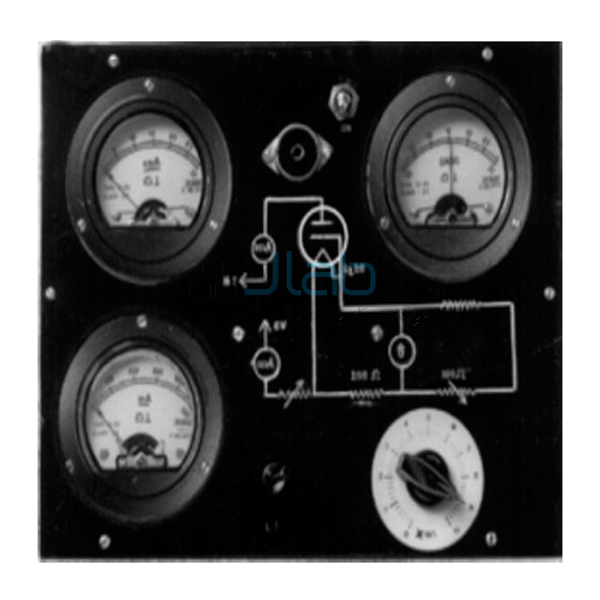

The Diode Valve Characteristics Apparatus (SKU JA-COVT-1071) is used to plot the V-I characteristics of a diode valve. A regulated 0-300 V DC supply at 30 mA provides the anode voltage and a 6.3 V AC, 1 A supply heats the filament. Two meters read voltage and current, and the panel carries a printed valve diagram with the supply and valve connections brought out to terminals.
Specifications
The listing gives these details:
| Product | Diode Valve Characteristics Apparatus |
| SKU | JA-COVT-1071 |
| DC supply | 0-300 V, 30 mA, regulated |
| Filament supply | 6.3 V AC, 1 A |
| Meters | Two, voltage and current |
| Panel | Printed valve diagram, connections on terminals |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
One apparatus with its valve per order line.
Frequently asked questions
What does the Diode Valve Characteristics Apparatus plot?
The V-I characteristics of a diode valve.
What supplies are built in?
A regulated 0-300 V DC, 30 mA supply and a 6.3 V AC, 1 A filament supply.
