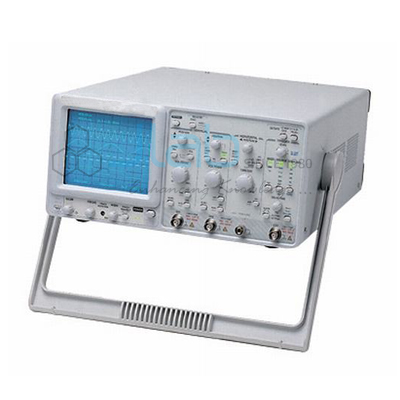

Digital Storage Oscilloscope 40MHz
Product Code : JA-DSO-1528
The 40 MHz digital storage oscilloscope is a two-channel bench instrument with an external trigger input, used in electronics, communication and physics laboratories to capture, store and measure signals. It has a rise time of 8.7 ns, vertical sensitivity from 2 mV/div to 5 V/div at 8-bit resolution, edge, video, pulse and delay triggering, and automatic voltage and time measurements (SKU JA-DSO-1528).
Specifications
Values listed for the 40 MHz model:
| Product | Digital Storage Oscilloscope 40MHz |
| SKU | JA-DSO-1528 |
| Bandwidth | 40 MHz |
| Channels | 2 + external trigger |
| Rise time | 8.7 ns |
| Equivalent sample rate | 50 GSa/s |
| Input impedance | 1 megohm // 13 pF |
| Input coupling | DC, AC, GND |
| Trigger types | Edge, video, pulse, delay |
| Trigger sources | CH1, CH2, Ext, Ext/5, Ext (50 ohm) |
| Acquisition modes | Auto, normal, single |
| Horizontal accuracy | ±0.01% |
| Vertical sensitivity | 2 mV/div to 5 V/div |
| Vertical resolution | 8 bit |
| Maximum input voltage | 400 V (DC + AC peak); 5 Vrms at 50 ohm |
| Automatic measurements | Vpp, Vamp, Vrms, Vmin, Vtop, Vbase, Vavg, frequency, period, rise time, fall time, +width, -width, overshoot, preshoot, +duty, -duty |
| Maths functions | +, -, x, ÷ and FFT |
Uses of the 40 MHz digital storage oscilloscope
The listed functions support:
- Capturing repetitive and single-shot signals in the auto, normal and single acquisition modes
- Reading amplitude, frequency, period, rise and fall times and duty cycle from the automatic measurements
- Viewing the frequency content of a signal with the FFT maths function
- Holding video and pulse signals steady on screen with the video and pulse trigger types
Scope of supply and ordering
The listing covers the 40 MHz two-channel digital storage oscilloscope with the specifications above, supplied by JaincoLab; accessories included with the unit are itemised on the quotation.
Frequently asked questions
What is the rise time of the 40 MHz model?
8.7 ns, with a vertical sensitivity range of 2 mV/div to 5 V/div at 8-bit vertical resolution.
Which trigger types and sources does it offer?
Edge, video, pulse and delay triggering, taken from CH1, CH2, the external input, Ext/5 or the 50 ohm external input.
What maximum input voltage is listed?
400 V (DC plus AC peak), and 5 Vrms where the 50 ohm input is used.
