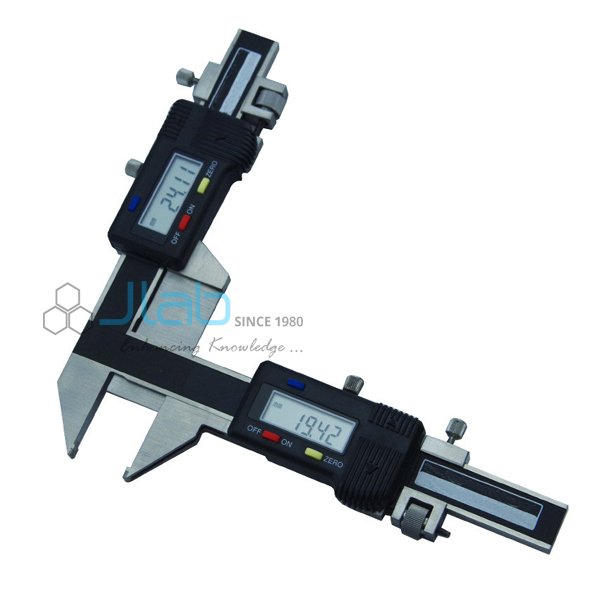

Digital Gear Tooth Vernier
Product Code : JA-PLE-4298
The Digital Gear Tooth Vernier (SKU JA-PLE-4298) is a digital caliper for measuring the thickness of gear teeth, the check used when cutting and inspecting gears. It reads in millimetres or inches, can be zero-set at any position and has a data output. This digital gear tooth vernier caliper is offered in 1-25 mm and 5-50 mm sizes for engineering workshops, metrology labs and TVET training.
Specifications
The instrument measures gear tooth thickness, switches between mm and inch, zero-sets at any position and has a data output; it is listed in sizes of 1-25 mm and 5-50 mm.
| Product | Digital Gear Tooth Vernier |
| SKU | JA-PLE-4298 |
| Measurement | Gear tooth thickness |
| Display | Digital, mm/inch conversion |
| Zero setting | At any position |
| Data | Data output |
| Sizes | 1-25 mm and 5-50 mm |
Applications of the digital gear tooth vernier
A gear tooth vernier measures the chordal thickness of a tooth at a set depth, so it is used to check that gears have been cut to size and to teach gear measurement in metrology and machining courses.
- Measuring chordal thickness of spur gear teeth
- Inspecting gears after cutting or grinding
- Metrology practicals in engineering colleges and polytechnics
- Gear manufacturing and machine-shop training in TVET centres
- Recording measurements through the data output
Scope of supply and ordering
The listing covers the digital gear tooth vernier in 1-25 mm and 5-50 mm sizes.
Frequently asked questions
What does a gear tooth vernier measure?
The thickness of gear teeth.
Which sizes are available?
1-25 mm and 5-50 mm.
Can it switch units and record readings?
Yes. It converts between mm and inch, can be zero-set at any position and has a data output.
