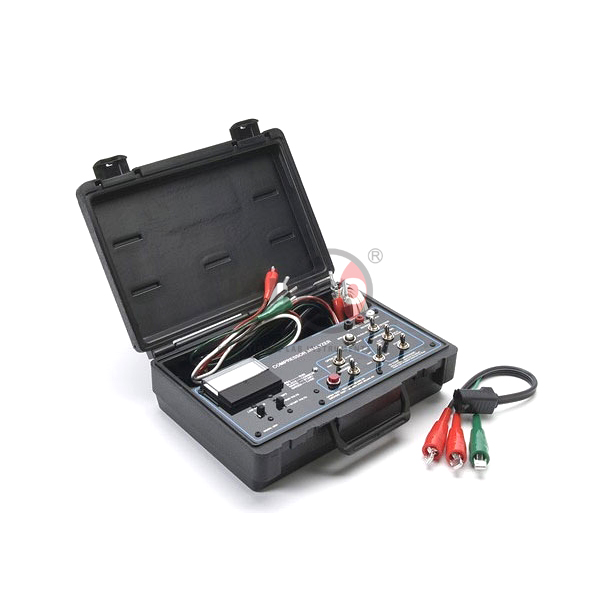

Compressor Analyzer
Product Code : JA-WEAWLM-8735
The compressor analyser tests the motor windings of single-phase refrigeration and air-conditioning compressors up to 5 HP at 110, 220 or 277 V, and can help free a locked compressor by reversing rotation. It measures running current on 0-10 and 50 A ranges and start and run voltage on 0-150 and 600 V AC ranges, and has a built-in 200 microfarad start capacitor (SKU JA-WEAWLM-8735).
Specifications
Listed features:
| Product | Compressor Analyzer |
| SKU | JA-WEAWLM-8735 |
| Compressors tested | Single phase, up to 5 HP; 110, 220 or 277 V |
| Motor types | Split-phase, capacitor start, PSC |
| Winding tests | Opens, continuity, grounds |
| Substitution tests | Start and run capacitors; system relays |
| Current ranges | 0-10 A and 50 A |
| Voltage ranges | 0-150 V and 600 V AC |
| Built-in start capacitor | 200 microfarad |
| Protection | 30 A breaker |
| Supplied with | 220 V adapter cord; capacitor leads; provision for an external run capacitor |
Scope of supply and ordering
The listing covers the compressor analyser with its adapter cord and capacitor leads, supplied by JaincoLab.
Frequently asked questions
Which compressors can it test?
Single-phase compressors up to 5 HP at 110, 220 or 277 V, in split-phase, capacitor-start or PSC configuration.
Can it free a stuck compressor?
Tied-up compressors may be freed by reversing the motor rotation.
What meter ranges does it have?
Current on 0-10 A and 50 A ranges; voltage on 0-150 V and 600 V AC ranges.
