Automatic Tissue Processor
Product Code : JA-M-2326

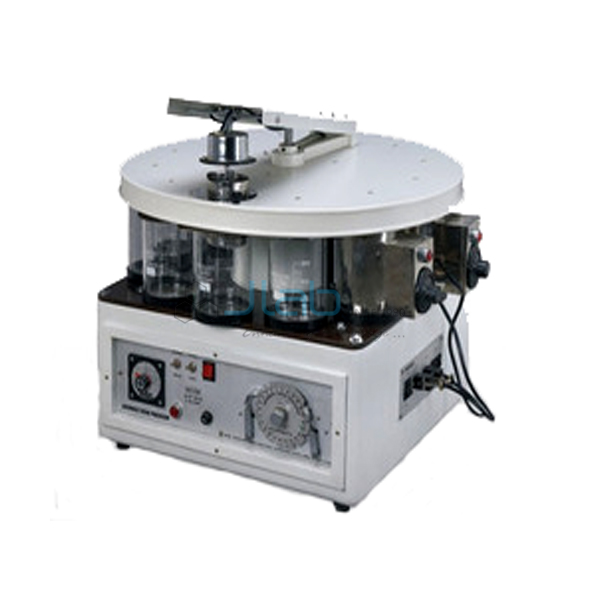

The Automatic Tissue Processor (SKU JA-M-2326) carries tissue samples automatically through fixation, dehydration and paraffin wax saturation, so that blocks are ready for embedding and sectioning. This automatic tissue processor agitates the samples continuously in a rotating stainless steel tissue basket, keeps the wax baths at the set temperature with thermostats and times each stage with calibrated timing discs. A glass door with lock allows viewing. JaincoLab manufactures it for histopathology and medical college laboratories.
Specifications
The processor works on 220 V AC, 50 Hz single phase and is supplied with a basket rotor, tissue basket, 24 tissue capsules, 10 glass beakers of 1 litre, 11 beaker covers and 2 thermostatic wax baths.
| Product | Automatic Tissue Processor |
| SKU | JA-M-2326 |
| Process | Fixation, dehydration and paraffin wax saturation |
| Agitation | Continuous, by rotating stainless steel tissue basket |
| Door | Glass, with locking arrangement |
| Wax baths | 2, stainless steel, each with thermostat |
| Timing | Calibrated timing discs (5-24 h listed); one-notch pliers for programming |
| Beakers | 10 glass beakers, 1 litre, with 11 beaker covers |
| Tissue capsules | 24, stainless steel |
| Power | 220 V AC, 50 Hz, single phase |
Applications of the automatic tissue processor
Moving samples through each reagent on a timed programme, often overnight, frees staff and gives even processing from batch to batch.
- Routine tissue processing in histopathology laboratories
- Pathology practicals in medical, dental and veterinary colleges
- Research laboratories preparing paraffin blocks
- Processing plant and animal tissue for teaching slides
Scope of supply and ordering
The listing covers the tissue processor with basket rotor, tissue basket, 24 stainless steel tissue capsules, 10 x 1 litre glass beakers, 11 beaker covers, 2 thermostatic wax baths, calibrated timing discs and one-notch pliers.
Frequently asked questions
Which stages does it automate?
Fixation, dehydration and paraffin wax saturation of tissue.
How many reagent stations does it have?
Ten 1 litre glass beakers plus two thermostatic wax baths.
How is the programme set?
With calibrated timing discs, programmed using the one-notch pliers supplied.
Related products
This processor is listed in the JaincoLab microtomes and histology range.
Request a quote
To order the Automatic Tissue Processor, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-M-2326. Buying under a laboratory tender? Use our tenders page.
