Ammeter
Product Code : JA-M-7736

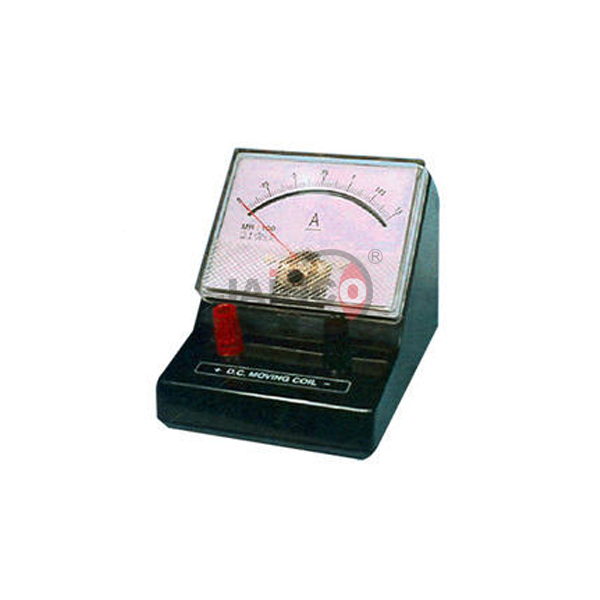

The Ammeter (SKU JA-M-7736) is a moving coil DC ammeter with a single 0–1 A range, for measuring current in school and college electricity practicals. It has a zero adjustment, 4 mm socket terminals, a 60 mm scale and an accuracy of 2.5%, in a case measuring 125 × 80 × 80 mm. JaincoLab supplies this 0–1 A DC ammeter for student benches and demonstration circuits.
Specifications
This moving coil ammeter is for DC only, reads 0 to 1 A on a single range with 2.5% accuracy, has a 60 mm scale, a zero adjustment and 4 mm socket terminals, and measures 125 × 80 × 80 mm.
| Product | Ammeter |
| SKU | JA-M-7736 |
| Type | Moving coil, DC only |
| Range | 0–1 A, single range |
| Accuracy | 2.5% |
| Scale length | 60 mm |
| Zero adjustment | Yes |
| Terminals | 4 mm sockets |
| Size | 125 × 80 × 80 mm |
Measuring current with the 0-1 A DC ammeter
The 0–1 A ammeter is connected in series with the circuit through its 4 mm sockets to measure the current in Ohm’s law, series and parallel circuit, and resistance experiments, and the zero adjustment lets students set the pointer before taking readings.
- Verifying Ohm’s law with a voltmeter and resistor
- Measuring current in series and parallel circuits
- Resistance and resistivity experiments
- Characteristic curves of lamps and components within 1 A DC
Scope of supply and ordering
The listing covers one 0–1 A moving coil DC ammeter. Leads, voltmeters and power supplies are listed separately.
Frequently asked questions
What range does this ammeter cover?
0 to 1 A DC, on a single range.
Can it be used on AC?
No. It is a moving coil ammeter for DC only.
How accurate is it?
It has an accuracy of 2.5%, with a 60 mm scale and zero adjustment.
Is a dual range model available?
Yes. The Dual Range Ammeter, 0–1 A and 0–5 A, is listed separately.
Related products
Meters and measuring instruments are listed in Measurement by JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the 0–1 A Ammeter, send the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
