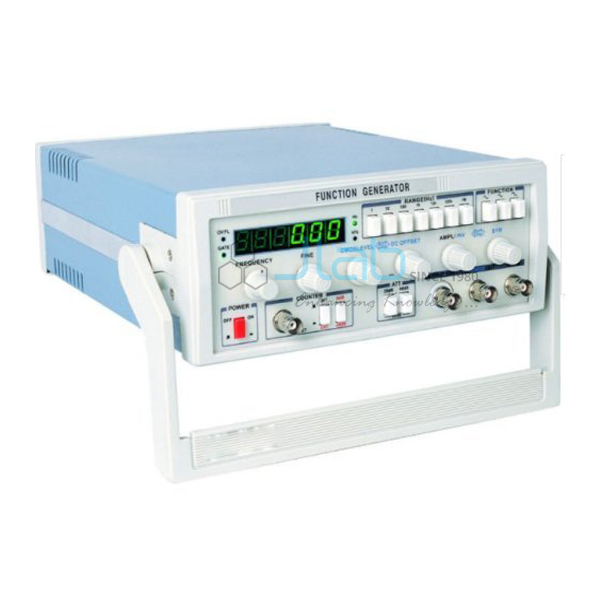

15 MHz Function Generator
Product Code : JA-SG-1550
With an upper frequency of 15 MHz, this function generator supplies sine, triangle, square, ±ramp and ±pulse signals for testing amplifiers, filters and digital circuits in college electronics labs. Voltage-controlled frequency, TTL/CMOS and sync outputs and a 1 Hz to 30 MHz counter are part of the listed specification (SKU JA-SG-1550).
Specifications
Specification summary:
| Product | 15 MHz Function Generator |
| SKU | JA-SG-1550 |
| Upper frequency | 15 MHz |
| Waveforms | Sine, triangle, square, ±ramp, ±pulse |
| VCF capability | Yes |
| Outputs | TTL/CMOS; sync |
| Distortion | Below 1% (10 Hz to 100 kHz) |
| Frequency response | Within 0.5 dB (0.1 Hz to 100 kHz) |
| Counter range | 1 Hz to 30 MHz |
Scope of supply and ordering
The listing covers the 15 MHz function generator, supplied by JaincoLab.
Frequently asked questions
What frequency range does its counter read?
1 Hz to 30 MHz.
Which outputs are available besides the main waveform?
TTL/CMOS and synchronous outputs.
