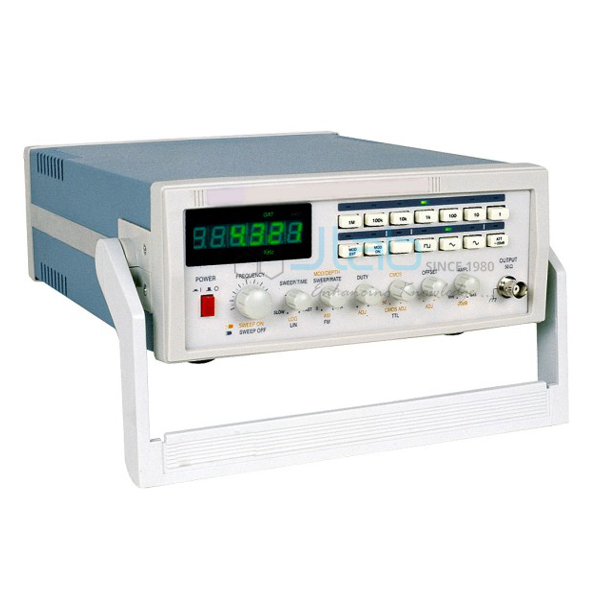

2 to 5 MHz AM and FM Function Generator

2 to 5 MHz AM and FM Function Generator

Product Code : JA-SG-1551

The 2 to 5 MHz AM and FM Function Generator is a test-signal source with built-in amplitude and frequency modulation. It comes as three separately coded variants, with a maximum sine frequency of 2, 3 or 5 MHz, each starting at 0.1 Hz. Sine, square, triangle and pulse waves are available. AM depth runs from 0 to 100%, and FM deviation goes up to 100 kHz.

Specifications of the AM and FM function generator

Product codeJA-SG-1551
Order variantsThree separately coded variants with a maximum sine frequency of 2 MHz, 3 MHz or 5 MHz; every variant starts at 0.1 Hz. Each is a separate model with its own frequency limit
WaveformsSine, square, triangle and pulse; the variant figure is the sine limit, and the other waveforms do not necessarily reach it
Main output50 ohm; 1 mVpp to 10 Vpp into 50 ohm
Modulation typesAM and FM, from an internal or an external source
AM depth0 to 100%
Modulation rateInternal 1 Hz to 20 kHz for both AM and FM; external DC to 20 kHz where the variant supports it
FM deviationAdjustable up to 100 kHz, within the carrier frequency and hardware limits
ManufacturerJaincoLab, Ambala, India

Modulation practicals with the AM and FM function generator

  • Measuring AM depth. Set a 1 kHz tone at a known depth and display the output on the 30 MHz Oscilloscope. Read the maximum and minimum envelope heights, work out the depth and compare it with the setting.
  • Envelope detection. Feed the AM output into the demodulator of the DSB and SSB-SC Amplitude Modulation and Demodulation Trainer. Compare the recovered tone with the modulating signal. Raise the depth step by step and note when the recovered tone starts to distort.
  • FM demodulation. Apply an FM signal to the Frequency Modulation and Demodulation Trainer and change the deviation. The recovered tone grows with deviation, while its pitch stays at the modulating rate.
  • Hearing the difference. Choose an audio carrier and a slow modulating rate, and play the output through a small amplifier and loudspeaker. AM is heard as a tremolo and FM as a vibrato, which makes the two ideas easy to remember.

Frequently Asked Questions

How is the AM modulation depth measured on an oscilloscope?
Read the maximum and minimum peak-to-peak heights of the envelope, Emax and Emin. Depth is Emax minus Emin, divided by Emax plus Emin, times 100%. Set the generator to a known depth first, then check your reading against the setting.

What does the trapezoid pattern show in an AM practical?
Put the modulating signal on the scope X input and the AM output on the Y input. The screen draws a trapezoid whose two vertical sides are the maximum and minimum envelope heights. Straight sloping sides mean the modulation is linear; curved sides show distortion, and a sharp point shows full depth.

How does FM deviation change the bandwidth of the signal?
Bandwidth grows with deviation. Carson's rule estimates it as twice the sum of the peak deviation and the highest modulating frequency. A small deviation gives narrowband FM, close to AM in width, while a large deviation spreads the power over many sidebands.

When should we use external rather than internal modulation?
Use internal modulation for fixed tones, which are quick to set and easy to repeat. Switch to external when the message must come from elsewhere, such as a microphone amplifier, a music source or a second generator. The external input takes signals from DC to 20 kHz where the variant supports it.

Into what load is the output level of this generator specified?
The output range of 1 mVpp to 10 Vpp is given into a 50 ohm load. Into a high-impedance input such as an oscilloscope, the same setting reads higher. State this load basis when you match the generator against an amplitude line in a tender.

Which variant should we order, and how is a tender line it does not meet handled?
Each variant is a separate model. Choose the 2 MHz, 3 MHz or 5 MHz variant from the highest sine frequency your experiments need, and name it in your enquiry. If a tender line asks for something this generator does not offer, point it out in the enquiry. The quotation can then answer that line directly.

Other generators in the signal generator range

See the Signal Generators range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
