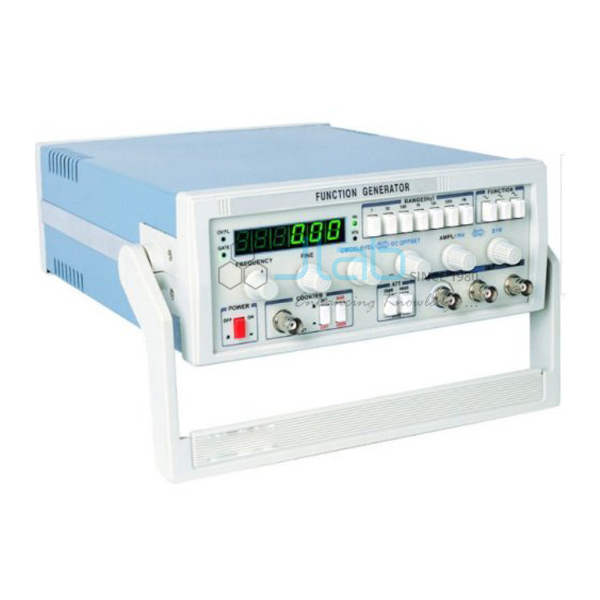

5 MHz Function Generator

5 MHz Function Generator

Product Code : JA-SG-1547

The 5 MHz Function Generator covers 0.5 Hz to 5 MHz in seven bands and adds an internal frequency sweep. Sine, square, triangle, pulse and ramp waves leave one 50 ohm BNC socket. An LED readout shows the frequency. The unit also gives a TTL/CMOS sync output and accepts an external VCF voltage.

Specifications of the 5 MHz sweep function generator

Product codeJA-SG-1547
Frequency range0.5 Hz to 5 MHz in seven bands
WaveformsSine, square and triangle, plus pulse and ramp with variable duty
Output and levelOne 50 ohm BNC output; 10 Vpp into 50 ohm or 20 Vpp open circuit
DC offsetVariable, up to ±5 V into 50 ohm, within the output headroom
SweepInternal frequency sweep
Sync and external controlTTL/CMOS sync output; external VCF input
ReadoutLED frequency readout; built-in counter for 1 Hz to 30 MHz
Sine distortionBelow 1% from 10 Hz to 100 kHz
Mains supply230 V AC, 50 Hz
ManufacturerJaincoLab, Ambala, India

Sweep and pulse practicals with the 5 MHz generator

  • Finding a resonance. Sweep across the Series and Parallel Resonance circuit and show the voltage across the resistor on the 20 MHz Dual Trace Cathode Ray Oscilloscope. A peak appears where the sweep passes the resonant frequency. Stop the sweep near the peak and read the value on the LED readout.
  • Filter shape at a glance. Feed the sweep through the Active Filters board and watch the output envelope rise and fall across the band. Compare the low-pass and high-pass sections on the same sweep.
  • Triggering a timer. Set a narrow pulse with the duty control and use it to trigger the Monostable Multivibrator using IC 555. The output pulse keeps its own width while the trigger rate changes.
  • Band changes. Set one frequency near the top of a band, then the same frequency near the bottom of the next band. Compare the readout and the waveform shape in both settings.

Frequently Asked Questions

What is the internal sweep on a function generator used for?
A sweep moves the output frequency smoothly from a start value to a stop value, over and over. Fed into a filter, amplifier or tuned circuit, it draws the whole frequency response on the scope at once. Students see the passband or the resonance without plotting point by point.

How is the sine wave made from the triangle inside the generator?
The triangle passes through a network of diodes and resistors. As the voltage rises, the diodes turn on one by one and flatten the slope near each peak. The shape then comes close to a sine. The match is never perfect, which is why a small sine distortion figure is given.

What is the difference between the sync output and the main output?
The main output carries the waveform you set, at the amplitude and offset you chose. The sync output gives a fixed logic-level square wave at the same frequency, for triggering a scope or clocking digital circuits. Its level does not follow the amplitude control, so it is not the test signal.

Do we still need a separate frequency counter with this generator?
Usually not. The LED readout shows the output frequency, and the built-in counter measures signals from 1 Hz to 30 MHz. A stand-alone counter is still handy on benches without a generator, for example to read the frequency of an oscillator circuit that students have built.

Can your team demonstrate the generator to our purchase committee or staff?
Yes. A JaincoLab team can demonstrate the generator to a purchase committee or at your institution, including the sweep and VCF functions. Service engineers can also install the units and show your staff the routine checks. Arrange the demonstration through our contact page.

Is a service manual available for the 5 MHz Function Generator?
Yes. Service manuals are available with our instruments, so your technicians have the information they need for routine checks and repairs. Ask for the manual to be listed in the quotation when you send your enquiry.

Other generators in the signal generator range

See the Signal Generators range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
