13 MHz Function Generator

13 MHz Function Generator

Product Code : JA-SG-1549

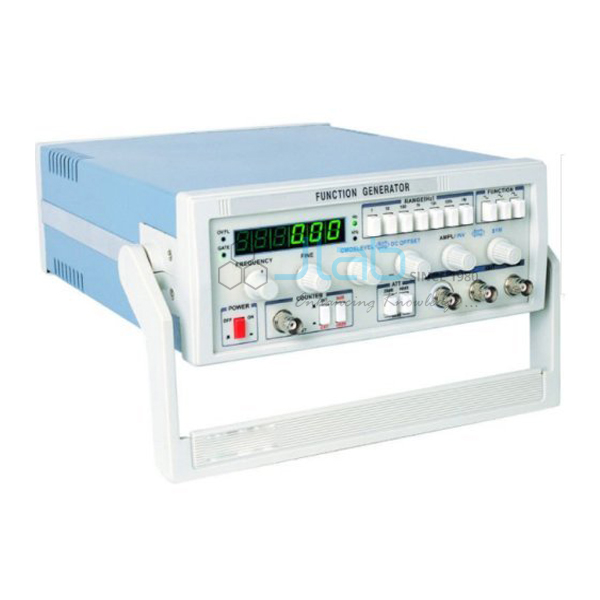

The 13 MHz Function Generator is a single-channel source with a sine range of 0.1 Hz to 13 MHz. Square waves reach 10 MHz, pulses 5 MHz, and triangle and ramp waves 1 MHz. It has a 50 ohm BNC output, linear and log sweep, a TTL sync output and a five-digit frequency display.

Specifications of the 13 MHz function generator

Product codeJA-SG-1549
Sine waveSingle channel, 0.1 Hz to 13 MHz; distortion below 1% from 10 Hz to 100 kHz
Square waveUp to 10 MHz
PulseVariable width, up to 5 MHz
Triangle and rampUp to 1 MHz
Output50 ohm BNC; up to 10 Vpp into 50 ohm at the lower frequencies
DC offsetUp to ±5 V, within the output swing
Sweep, sync and VCFLinear and logarithmic sweep; TTL sync output; VCF input on builds ordered with it
DisplayFive-digit; built-in counter 1 Hz to 30 MHz
Power supply230 V AC, 50 Hz
ManufacturerJaincoLab, Ambala, India

Waveform and logic practicals with the 13 MHz generator

Frequently Asked Questions

Why does the square wave stop at a lower frequency than the sine wave?
A square wave needs fast rising and falling edges. At high frequency the edge time becomes a large part of each cycle, so the wave turns rounded and no longer looks square. A sine has no edges to keep sharp, so it can go higher. That is why each waveform has its own upper limit.

What is the difference between a square wave and a pulse output?
A square wave spends equal time high and low, a 50% duty cycle. A pulse output lets you change that ratio, so the high part can be short and the low part long. Narrow pulses are used to trigger timers, test logic gates and study how RC circuits respond to short events.

How do we set the generator to drive a TTL logic input?
The simplest way is the TTL sync output, which already gives logic levels. To use the main output instead, choose a square wave and set 5 Vpp. Add a positive offset of half that amount, so the wave swings from zero to five volts. Check the levels on a scope before connecting.

Can you quote an equivalent if our tender names another generator model?
Yes. JaincoLab can quote equivalents for items on a lab list. Send the model or the specification lines from your tender. The quotation will then set this generator's sine, square, pulse and sweep limits against each line.

Who looks after the generators after they are installed?
JaincoLab service engineers handle after-sales service and can visit your site. Your own technicians can do routine checks with the service manual, which is available with the instrument. For a service visit, write to us through the contact page with the product code JA-SG-1549.

Other generators in the signal generator range

See the Signal Generators range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.

Last updated: 20 November 2026
