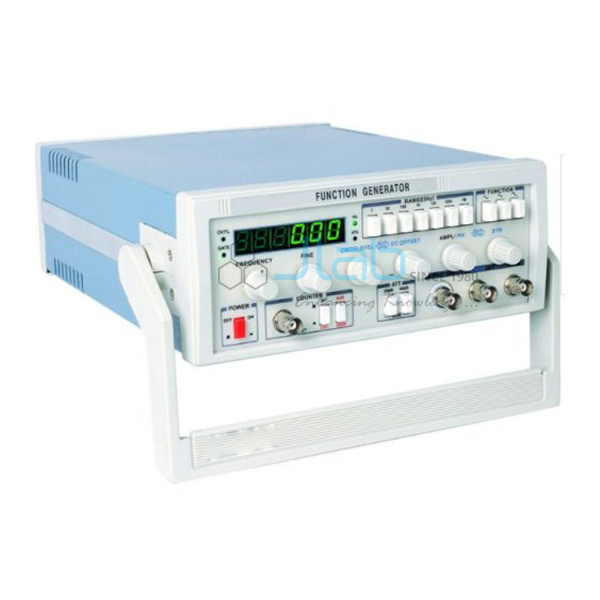

15 MHz Function Generator
Product Code : JA-SG-1550
The 15 MHz Function Generator gives sine waves from 0.1 Hz to 15 MHz on one channel, for tuned circuits and wideband amplifier work. Square waves go to 10 MHz, pulses to 5 MHz, and triangle and ramp waves to 1 MHz. Linear and log sweep, a TTL sync output and a five-digit readout are included.
Specifications of the 15 MHz function generator
| Product code | JA-SG-1550 |
|---|---|
| Sine wave | One channel, 0.1 Hz to 15 MHz; response within 0.5 dB from 0.1 Hz to 100 kHz |
| Sine distortion | Below 1% from 10 Hz to 100 kHz |
| Upper limits of other waveforms | Square 10 MHz; variable pulse 5 MHz; triangle and ramp 1 MHz |
| Output | 50 ohm BNC; 10 Vpp into 50 ohm at low frequencies; at least 5 Vpp sine into 50 ohm at 15 MHz* |
| DC offset | Up to ±5 V at low frequencies, within the amplitude headroom; on the top band the output-stage headroom limits the offset* |
| Sweep | Linear and logarithmic |
| Sync and control | TTL sync output; VCF capability |
| Frequency readout | At least five digits; counter range 1 Hz to 30 MHz |
| Power supply | 230 V AC, 50 Hz |
| Manufacturer | JaincoLab, Ambala, India |
* Standard JaincoLab specification for new builds.
Timing and bridge practicals with the 15 MHz generator
- Time constant of an RC network. Drive the RC Circuit Transient Response board with a slow square wave. Measure how long the capacitor voltage takes to reach about two-thirds of its final value. Compare that time with the product of R and C.
- Wien bridge balance. Feed a sine into the Wien Bridge and tune the frequency for a null at the detector. Work out the expected frequency from the bridge arms and compare it with the five-digit readout.
- Checking the readout. Connect the main output to the Frequency Counter and compare both readings band by band. Then view the same signals on the Digital Storage Oscilloscope 40MHz to see how the square and pulse shapes change near their upper limits.
Frequently Asked Questions
What is the difference between peak-to-peak and peak amplitude on the generator?
Peak-to-peak is the full swing from the lowest point of the wave to the highest. Peak, or amplitude, is half of that, measured from the centre line. A 10 Vpp sine therefore has a peak of 5 V, and a meter that reads RMS shows a smaller value again.
How do we avoid ground loops when the generator and the oscilloscope share a circuit?
On most mains-powered bench instruments the BNC screens connect to mains earth, so the ground clips of the generator and the scope are already joined. Clip both grounds to the same circuit point, never to two different points. Keep leads short and never ground a clip on a node that sits above earth.
How do we get a very small test signal for a sensitive amplifier?
Turn the amplitude control well down first, then add an external attenuator or a resistor divider at the output. The signal stays clean, and the divider gives the amplifier a low source resistance. Measure the input level on the scope rather than trusting the dial near the bottom of its range.
How do we ask for a quotation for a class set of generators?
Send the product name, the number of benches and any accessories your lab needs through our contact page. For distributors and education projects, JaincoLab can also build custom kits that combine generators with other bench instruments. Tender and project enquiries go to the tenders page.
What should the import documents say for this generator?
Describe it as a function generator, a type of signal generator, and give the product code JA-SG-1550 with its frequency range. A clear description keeps it under the signal generator heading rather than with measuring instruments such as oscilloscopes. Your customs broker then sets the full tariff line.
Why does the oscilloscope show about twice the amplitude set on the generator?
The amplitude is rated into a 50 ohm load. A scope input has a high impedance, so it hardly loads the 50 ohm source and reads about twice the loaded value. Fit a 50 ohm terminator at the scope, or allow for the factor of two. The top band, for example, is rated at least 5 Vpp sine into 50 ohm.
