10 MHz Function Generator

10 MHz Function Generator

Product Code : JA-SG-1548

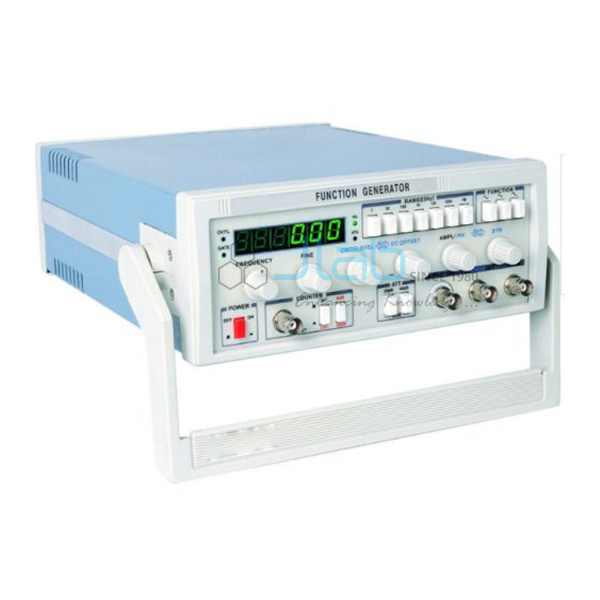

The 10 MHz Function Generator is an analogue sweep generator for 0.1 Hz to 10 MHz. It gives sine, square, triangle, pulse and ramp outputs on a 50 ohm BNC socket, with linear and logarithmic sweep. A five-digit LED display reads the frequency. A TTL sync output and a VCG input handle triggering and voltage control.

Specifications of the 10 MHz analogue sweep function generator

Product codeJA-SG-1548
Type and rangeAnalogue sweep function generator, 0.1 Hz to 10 MHz
WaveformsSine, square, triangle, pulse and ramp
Output50 ohm BNC; up to 10 Vpp into 50 ohm, 20 Vpp unloaded
DC offsetUp to ±5 V into 50 ohm, within the combined output swing
SweepLinear and logarithmic; AM and FM are not part of the base unit
Sync and VCGTTL sync output; VCG (voltage-controlled generator) input
DisplayFive-digit LED; built-in counter 1 Hz to 30 MHz
Sine performanceDistortion under 1% from 10 Hz to 100 kHz; response within 0.5 dB from 0.1 Hz to 100 kHz
Power supply230 V AC, 50 Hz
ManufacturerJaincoLab, Ambala, India

Frequency response and trigger practicals with the 10 MHz generator

  • Amplifier frequency response. Run a logarithmic sweep into the Two Stage RC Coupled Transistor Amplifier and view its output on the 70 MHz Digital Storage Oscilloscope. Each decade takes equal screen width, so the low and high cut-off points are easy to find.
  • Schmitt trigger thresholds. Feed a slow triangle into the Study of Operational Amplifier as Schmitt Trigger board and show input and output together. Read the upper and lower switching levels and the hysteresis between them.
  • Steady triggering. Connect the TTL sync output to the external trigger input of the scope. The trace stays still even when the main waveform is small or noisy, which helps on low-level amplifier stages.

Frequently Asked Questions

When should we use a logarithmic sweep instead of a linear sweep?
Use a logarithmic sweep for audio amplifiers, filters and anything plotted on a Bode diagram. It spends equal time in every decade, so the low end is not squashed into one corner. A linear sweep suits narrow ranges, such as the response around one resonance or an IF filter.

How does an analogue sweep generator differ from a DDS generator?
An analogue generator forms its waves with an integrator, a comparator and a shaping network, and tunes them by changing a current. A DDS generator builds them from stored samples through a digital-to-analogue converter. The analogue design sweeps smoothly and is easy to service; DDS gives very precise, stable frequencies.

What precautions protect the generator output during student practicals?
Never connect the output to a point that can drive current back into it, such as a supply rail. Start with the amplitude low and the offset at zero, then raise them. Keep the BNC lead clips apart so they cannot short, and turn the amplitude down while rewiring.

Which HS code is used for importing the 10 MHz Function Generator?
Function generators are signal generators, classified under HS subheading 8543.20. Each country adds its own digits after the first six, so your customs broker confirms the full tariff line. Use the description function generator and the product code JA-SG-1548 on your order, so the papers match.

Will your engineers install the generators at our site?
Yes. JaincoLab service engineers can install the generators at your site and hand them over to your staff in working order. The same team handles after-sales service. Give the number of units and the site address when you send your enquiry through our contact page.

Other generators in the signal generator range

See the Signal Generators range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.

Last updated: 20 November 2026
