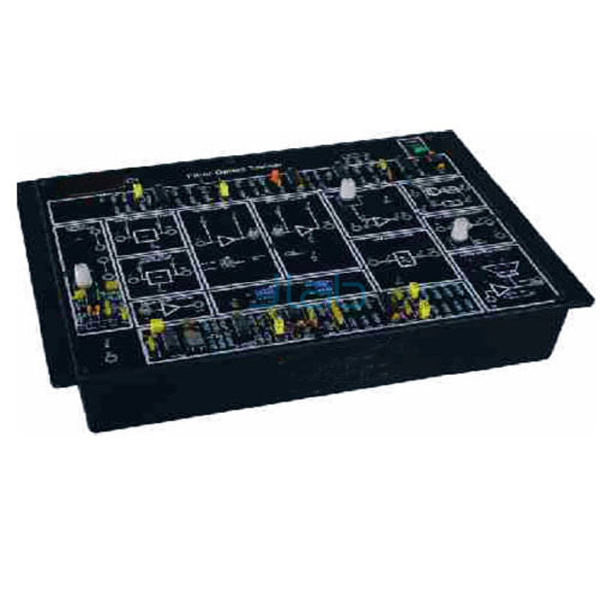

Elementary Fiber Optics Trainer
Product Code : JA-AET-1477
The Elementary Fiber Optics Trainer is a one-way (simplex) fibre optic link for analogue and digital signals at 660 nm. Students send AM, FM and PWM signals, and their own voice, over PMMA plastic fibre. They also measure propagation loss, bending loss and numerical aperture, and trace switched faults in the transmitter and the receiver.
Specifications of the elementary fibre optics trainer
| Product code | JA-AET-1477 |
|---|---|
| Optical link | Simplex analogue and digital link; one fibre optic LED transmitter, peak emission 660 nm; one fibre optic photodetector receiver |
| Modulation | AM, FM and PWM modulation and demodulation; driver with analogue and digital modes, PLL detector, AC amplifier and comparator |
| Signal sources | Crystal-controlled 4.096 MHz clock; 1 kHz sine with adjustable amplitude and 1 kHz TTL square; voice link with built-in microphone and speaker |
| Filter and bandwidth | 4th order Butterworth filter, 3.4 kHz cut-off; bandwidth 350 kHz analogue and 2.5 MHz digital |
| Fibre cables | Step-index multimode PMMA plastic fibre, 1000 micron, 2.2 mm outer diameter, SMA connectors; core index 1.492, cladding index 1.406; 0.5 m and 1 m lengths |
| Numerical aperture | Better than 0.5 (acceptance angle better than 60°) |
| Faults and test points | 4 switched faults in the transmitter and 4 in the receiver; 29 test points with 4 mm sockets |
| Power supply | 230 V AC, 50 Hz mains adapter with an isolated, regulated low-voltage output. Earlier units: 220 V ±10%, 50 Hz nameplate, about 3 VA |
| Supplied with | Line cord, manuals, NA measurement jig, mandrel, fibre cables, microphone, headphone and patch cords; optical power meter and 5 m and 10 m cables as options |
| Manufacturer | JaincoLab, Ambala, India |
Experiments on the elementary fibre optics trainer
- Bending loss on the mandrel. Send a steady signal over the 1 m cable and note the received level. Wind the fibre round the mandrel one turn at a time and plot the loss against the number of turns.
- Loss per metre. Measure the optical power at the far end of the 0.5 m and the 1 m cables with a Fiber Optic Power Meter. Work out the loss for each extra metre of fibre.
- Numerical aperture on the jig. Project the output onto the NA jig, measure the spot at two distances and work out the acceptance angle. Compare the method with the Fibre Optic Trainer for Numerical Aperture, which is built for this one measurement.
- AM, FM and PWM compared. Bend the fibre and view the input and the recovered signal of each modulation on the 30 MHz Oscilloscope. Note which method holds the signal shape most closely.
Frequently Asked Questions
Why does the received signal fall when the fibre is wound tightly round the mandrel?
Light stays in the core because it meets the cladding at a shallow angle. A tight bend makes some rays strike the boundary too steeply, so they leak out of the core. Each extra turn on the mandrel adds a little more loss, which students plot against the number of turns.
How can students check the numerical aperture from the core and cladding indices?
Numerical aperture is the square root of the core index squared minus the cladding index squared. With 1.492 and 1.406 it comes to about 0.5, which matches the value measured on the NA jig. A large numerical aperture lets the plastic fibre accept light from a wide cone.
Why does the trainer use red 660 nm light with plastic fibre?
PMMA plastic fibre carries visible red light with far less loss than infrared light. A red LED near 660 nm is simple to drive and its light is visible. Students can see it leave the fibre end and line up the jig by eye. Glass fibre links use infrared, where glass loss is lowest.
Do students need eye protection when they work with the trainer?
The source is a low-power LED, not a laser, so the light is safe at normal viewing distances. Students should still not stare into a lit fibre end at close range. Keep cut fibre ends in a box, and keep the SMA connector caps on whenever the cables are stored.
Which accessories come with the trainer, and which are optional?
The trainer comes with a line cord, manuals, the NA measurement jig and a mandrel. It also has 0.5 m and 1 m fibre cables, a microphone, a headphone and patch cords. An optical power meter and 5 m and 10 m fibre cables are optional, so list them in the enquiry if your experiments need them.
Are user and service manuals provided with the fibre optics trainer?
Yes. Manuals come with the trainer, and JaincoLab provides service manuals with its instruments, which help a lab technician trace a fault on the board. If you need a set for each bench or for your stores, give the number of copies in your enquiry.
