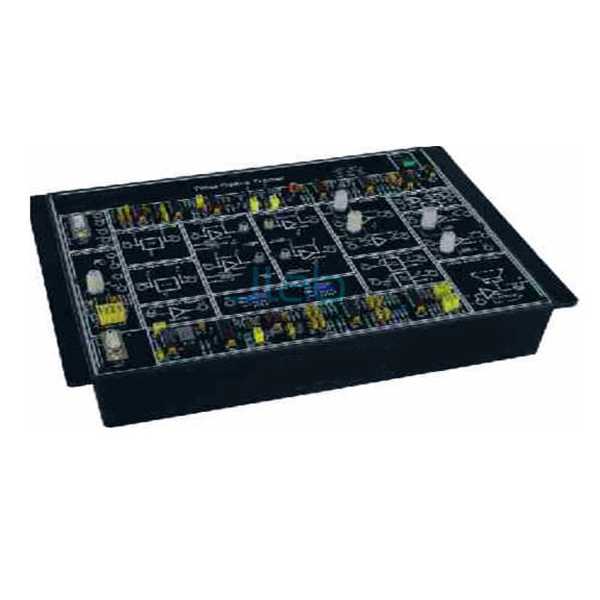

Advanced Fiber Optics Trainer
Product Code : JA-AET-1478
The Advanced Fiber Optics Trainer is a full-duplex analogue and digital fibre optic link with two channels, at 660 nm and 950 nm. Students send AM, FM and PWM signals and their own voice over the link, and connect two computers through RS232 ports. They also measure propagation loss, bending loss and numerical aperture, and trace switched faults.
Specifications of the advanced fibre optics trainer
| Product code | JA-AET-1478 |
|---|---|
| Optical link | Full-duplex analogue and digital link with 660 nm and 950 nm channels; two fibre optic LEDs (peak emission 660 nm and 950 nm) and two fibre optic photodetectors |
| Signal blocks | Driver with analogue and digital modes, PLL detector, two AC amplifiers and two comparators; crystal-controlled 4.096 MHz clock |
| Modulation | AM, FM and PWM modulation and demodulation; voice link and on-board function generator |
| Filters and bandwidth | Two 4th order Butterworth filters, 3.4 kHz cut-off; bandwidth 350 kHz analogue and 2.5 MHz digital |
| Computer link | RS232 ports with software, for full-duplex PC-to-PC communication over the fibre |
| Measurement aids | NA measurement jig, mandrel for bending loss, and switched faults in the transmitter and the receiver |
| Fibre set | Plastic optical fibre cables of 1 m, 2 m and 5 m, with matched connectors* |
| Optical power and leads | Optical power measurement for the loss experiments, and patch leads* |
| Power supply | Isolated universal mains adapter, 100 to 240 V AC, 50/60 Hz input, with a low-voltage DC output matched to the board* |
| Manufacturer | JaincoLab, Ambala, India |
* Standard JaincoLab specification for new builds.
Experiments on the advanced fibre optics trainer
- Propagation loss. Launch the 660 nm signal into the 1 m fibre, then the 5 m fibre. Read the received power each time on the Fiber Optic Power Meter. The difference in dB, divided by the extra length, gives the loss per metre.
- Modulated signals. Send AM, FM and PWM signals from the on-board function generator. Compare the sent and recovered waveforms on the 20 MHz Dual Trace Cathode Ray Oscilloscope.
- Full-duplex PC link. Connect two computers to the RS232 ports and send text both ways at once. Disconnect one fibre and note which direction stops.
- From simplex to duplex. Start on the Elementary Fiber Optics Trainer, a one-way 660 nm link. Then use this trainer to see how two channels carry signals in both directions.
Frequently Asked Questions
Why does the advanced trainer have a 950 nm channel as well as a 660 nm channel?
The two channels let signals travel both ways at once, each with its own LED and photodetector. The 660 nm channel is visible red light, which plastic fibre carries with low loss. Students can see it and line up the fibre by eye. The 950 nm channel is near infrared and cannot be seen, so check it by the received power.
How do students measure the propagation loss of the plastic fibre?
Launch the same signal into a short fibre and a long fibre, and read the received power for each. The difference in dB is the loss of the extra length, so dividing by that length gives the loss per metre. Keep the launch, the connectors and any bends the same for both readings.
Why should the fibre ends and connectors be cleaned before each loss reading?
Dust or a scratch on a fibre end scatters light, so the received power drops and the loss looks higher than it is. Wipe each end with a lint-free tissue, look at it before connecting, and keep caps on unused connectors. Clean ends make the readings repeatable from one group to the next.
How is a reference reading set before fibre loss is measured?
Connect the shortest fibre between the transmitter and the power measurement and note the reading as the reference. Each later reading is compared with it, so the loss of the extra fibre is the difference in dB. Repeat the reference at the start of each session, as the LED output changes as it warms up.
What should a tender list for the fibre set and power measurement of this trainer?
Describe each fibre by type, length and connector. The standard set is plastic optical fibre in 1 m, 2 m and 5 m lengths with matched connectors. List the optical power measurement and the patch leads. Give the 660 nm and 950 nm channels and the RS232 PC link as well.
Can the fibre optics trainers be installed and demonstrated at our institution?
Yes. JaincoLab service engineers install the trainers at your site and hand them over working. A team can demonstrate the experiments to staff or a purchase committee. Service manuals are available with the instruments. Give the number of benches in your enquiry.
