Advanced Fibre Optic Analogue Transceiver Trainer
Product Code : JA-FOT-1538

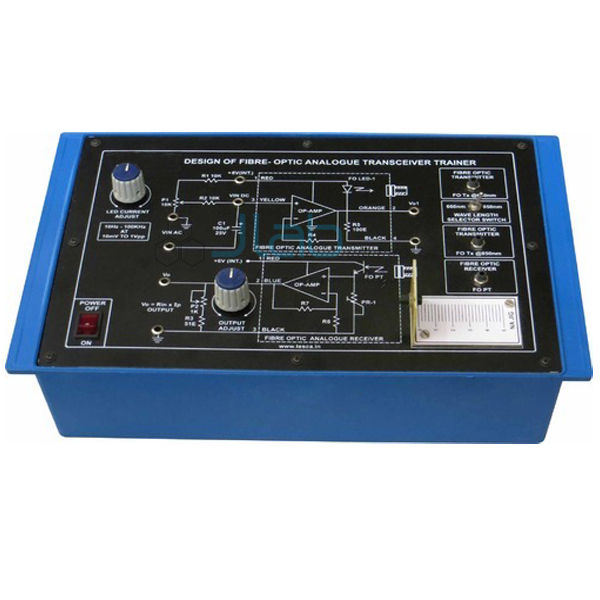

The Advanced Fibre Optic Analogue Transceiver Trainer carries an analogue signal over plastic optical fibre. A 650 nm red LED transmitter drives a silicon photodiode receiver through 1 mm PMMA fibre in 1 m and 5 m lengths. Students measure link gain and bandwidth, loss against length, bending loss and alignment.
Specifications of the advanced fibre optic analogue transceiver trainer
| Product code | JA-FOT-1538 |
|---|---|
| Transmitter | 650 nm red LED, analogue |
| Receiver | Silicon photodiode, matched to the transmitter |
| Optical fibre | 1 mm PMMA step-index plastic fibre, in 1 m and 5 m lengths |
| Electrical coupling | DC or audio (AC) coupling of the analogue link, as specified when ordering |
| Link bandwidth | 20 Hz to 100 kHz at -3 dB, measured end to end on the 1 m link; this is separate from the bandwidth of the fibre alone |
| Power supply | 12 V DC adapter |
| Supplied items | Transmitter and receiver units, the two fibre lengths, in-line SMA adaptor, mandrel for bend-loss tests and patch leads |
| Experiments | Analogue transfer gain and bandwidth, attenuation against fibre length, bending loss and alignment |
| Also needed | AF/RF generator 10 Hz to 1 MHz, digital multimeter, 20 MHz oscilloscope and fibre optic power meter, not included |
| Manufacturer | JaincoLab, Ambala, India |
Analogue link experiments with the fibre optic trainer
- Link bandwidth. Feed a sine from the 2 MHz Function Generator into the transmitter over the 1 m link. Read input and output on the 30 MHz Oscilloscope. Step the frequency to find the -3 dB points and plot the response.
- Loss against length. Read the received optical power on the Fiber Optic Power Meter through the 1 m fibre and then through the 5 m fibre. The difference, divided by the extra length, gives the loss per metre.
- Bending loss. Wind the fibre around the mandrel one turn at a time and record the fall in received signal after each turn. Then unwind it and check that the signal recovers.
- Speech over fibre. Compare the analogue link with the Fibre Optic Voice Transmitter and Receiver Trainer and discuss which coupling, DC or audio, suits each kind of signal.
Frequently Asked Questions
Why is the bandwidth of the whole link quoted separately from the fibre bandwidth?
Over a short length the fibre alone passes far higher frequencies than the LED and photodiode circuits can. The link figure, 20 Hz to 100 kHz at -3 dB on the 1 m link, runs from electrical input to electrical output. It therefore includes the transmitter and receiver electronics, and it is the figure students actually measure.
Why does the trainer use a red LED and a silicon photodiode?
A 650 nm red LED sits in the low-loss window of PMMA fibre, and its visible light makes alignment easy and safe for students. A silicon photodiode responds well at that wavelength and gives a current that follows the light level, which suits an analogue link.
How do students work out fibre loss in dB per metre?
Measure the received power through the 1 m fibre and then through the 5 m fibre, keeping the same launch and connectors. Divide the difference in dB by the difference in length. Using two lengths cancels the coupling losses that both readings share.
How should the fibre ends and connectors be looked after?
Keep the dust caps on whenever a connector is not in use, and never touch the fibre end face. Wipe each end with a lint-free cloth before measuring, and inspect it for scratches or dirt if readings drift. Hold the connector body, not the fibre, when plugging in.
Which figures should we check against our tender for this trainer?
Check the 650 nm source, the silicon photodiode receiver and the 1 mm PMMA fibre in 1 m and 5 m lengths. Check the link bandwidth of 20 Hz to 100 kHz at -3 dB as well. Then confirm the coupling option and the 12 V DC supply. Quote the product code JA-FOT-1538 in your bid papers.
Can your team train our staff on the analogue link experiments?
Yes. A JaincoLab team can demonstrate the experiments at your institution, and service engineers install the trainers. Tell us how many benches you are equipping when you send your enquiry, so the demonstration can be planned.
