Dual Channel Digital Storage Oscilloscope 100 to 300 MHz

Dual Channel Digital Storage Oscilloscope 100 to 300 MHz

Product Code : JC-E-1536

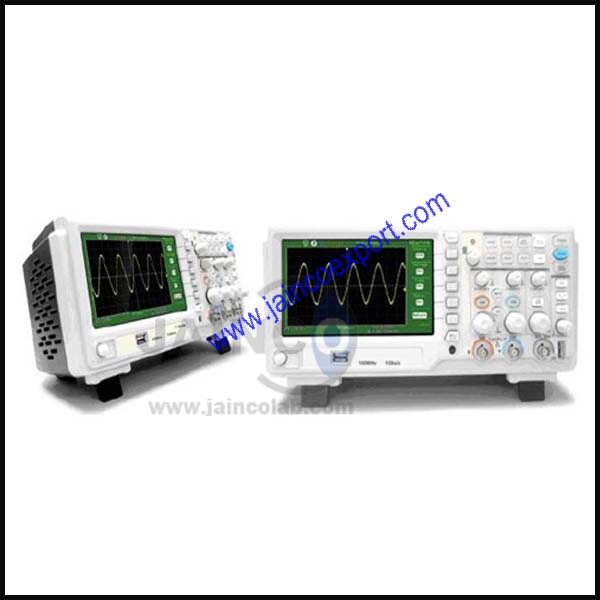

This dual-channel digital storage oscilloscope is made in 100 MHz, 200 MHz and 300 MHz versions. Every version has two channels, 2 GSa/s real-time sampling, a 24k memory depth and a colour TFT display. It has six trigger modes, 32 automatic measurements, FFT on a split screen, a digital filter, pass/fail testing and a waveform recorder.

Specifications of the 100 to 300 MHz dual channel DSO

Product codeJC-E-1536
Bandwidth versions100 MHz, 200 MHz or 300 MHz, chosen with the order
Channels2
Sampling and memory2 GSa/s real time; 24k memory depth
DisplayColour TFT LCD; multilingual menus and online help
TriggeringEdge, pulse, video, slope, alternative and delay
Measurements and analysis32 automatic parameters; cursors in manual, track and auto modes; digital filter; waveform recorder; pass/fail; FFT on a split screen
InterfacesUSB host and device, front and back; GPIB
Mains supply100 to 240 V AC, 50/60 Hz universal input*
ProbesOne correctly rated 10x passive probe per channel*
ManufacturerJaincoLab, Ambala, India

* Standard JaincoLab specification for new builds.

Higher-bandwidth measurements with the dual channel DSO

  • Rise time of a fast edge. Show the square output of the 10 MHz Function Generator with a short probe ground lead and measure the rise time. Compare the reading with the rise time given for the generator.
  • RF carrier on screen. Display the output of the 150 MHz RF Signal Generator at several frequencies. Note how the displayed amplitude changes as the frequency nears the bandwidth of the version in use.
  • FSK data and carrier. Show the data input and the modulated output of the Frequency Shift Keying Modulation and Demodulation board together. Measure the two carrier frequencies with the automatic parameters.
  • Saving results. Store each waveform to a USB drive at the end of the practical. Students can then plot the data and add the screen images to their reports.

Frequently Asked Questions

Which bandwidth version suits our signals: 100, 200 or 300 MHz?
Choose a bandwidth three to five times the highest frequency you need to measure, so amplitudes stay accurate. For square waves and logic signals, the fast edges matter more than the repetition rate. Work out the fastest edge you must see, and choose the version from that.

How does the bandwidth of an oscilloscope limit the rise time it can show?
Higher bandwidth means a faster rise time of the scope itself. The 300 MHz version shows an edge about three times faster than the 100 MHz version can. An edge close to the scope rise time is drawn slower than it really is, so allow a margin.

How do students measure the rise time of a pulse on the oscilloscope?
Spread one edge across most of the screen. Then use the automatic rise-time measurement, or place the cursors at one tenth and nine tenths of the step. Keep the probe ground lead short, because a long lead adds ringing that spoils the reading.

Which version should an undergraduate teaching lab choose?
For first-year circuits, audio and low-frequency work, the 100 MHz version is ample. Communication, digital and fast-pulse courses gain from the 200 MHz or 300 MHz versions. Many labs fit most benches with the lower version and keep one or two higher-bandwidth scopes for advanced practicals.

How does the oscilloscope connect to a computer or a test system?
It has USB host and device ports on the front and back, and a GPIB interface. Waveforms and screen images can be saved to a USB drive or passed to a PC over USB. GPIB suits older automatic test systems that control instruments over that bus.

Which mains supply and probes come with each version?
Each version runs on 100 to 240 V AC, 50/60 Hz mains. It comes with one 10x passive probe per channel, rated to suit the bandwidth of the version. The probe and the scope together set the bandwidth of a measurement, so keep spare probes of the same rating.

Other digital storage oscilloscopes in the range

See the Digital Storage Oscilloscopes range and more electronics lab equipment from JaincoLab, an electronics lab equipment manufacturer in India.

For a quotation, send the product name and the quantity you need through our contact page. For tender or project supply, see our tenders page.
