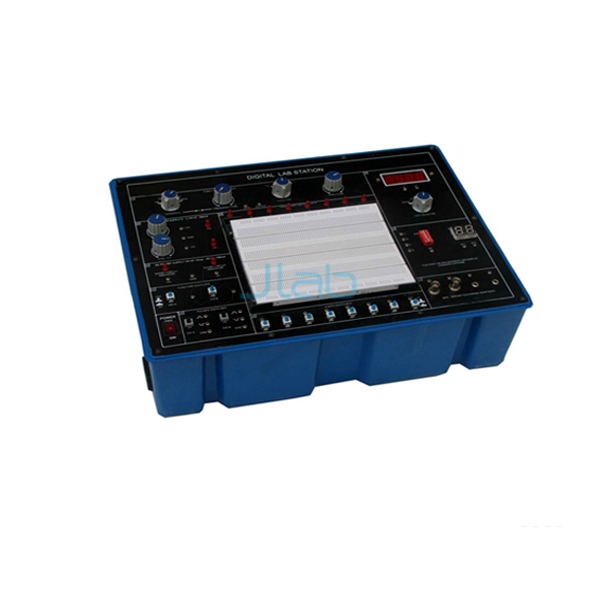

Digital Lab Station
Product Code : JA-BT-1485
The Digital Lab Station is a breadboard trainer for digital electronics. It has an 830-point solderless breadboard, a fixed +5 V rail and adjustable 0 to +15 V and 0 to -15 V rails. All the rails are current limited. A variable logic clock runs from 1 Hz to 100 kHz. Eight switches, eight LEDs, two debounced push-buttons and a starter kit of logic ICs are included.
Specifications of the Digital Lab Station
| Product code | JA-BT-1485 |
|---|---|
| Breadboard | One 830-point solderless breadboard |
| Supplies | Fixed +5 V, rated 1 A*; adjustable 0 to +15 V and 0 to -15 V rails, rated 0.5 A each*; current limiting and short-circuit protection on every rail* |
| Clock and pulses | Variable logic clock, 1 Hz to 100 kHz; pulse and square outputs |
| Inputs | Eight logic switches; two debounced push-buttons |
| Outputs | Eight LED indicators |
| Mains supply | Isolated supply for 230 V AC, 50 Hz mains* |
| Supplied with | Patch leads, jumpers, a starter kit of logic ICs and passive parts, and a user manual |
| Experiments | Logic gates, Boolean identities and code converters; adders, subtractors and multipliers; flip-flops, counters and shift registers; multiplexers, encoders and decoders; CMOS-TTL interfacing, crystal oscillator and pulse stretcher |
| Manufacturer | JaincoLab, Ambala, India |
* Standard JaincoLab specification for new builds.
Digital electronics practicals on the station
- Gates and De Morgan's theorem. Wire a NAND gate and an OR gate with inverted inputs from the starter kit. Drive them from the switches, read the LEDs and show that the two truth tables match.
- Full adder from gates. Build a one-bit full adder from EX-OR, AND and OR gates. Check its truth table against the ready-made 4-Bit Binary Full Adder and Subtractor board.
- Counting with flip-flops. Clock a chain of JK flip-flops from the variable clock at its slowest setting and watch the LEDs count. Compare the action with the Training Board for Flip-Flops.
- Rail check first. Before inserting any IC, measure the 5 V rail at both ends of the breadboard with a Digital Multimeter and note any difference.
Frequently Asked Questions
Why should students check the breadboard power rails before they build a circuit?
On many 830-point breadboards the long rail strips are split in the middle. A rail fed at one end can then be dead at the other. Check each rail with a meter before inserting ICs, and bridge any gap with a jumper. A dead rail is a common reason why a correct circuit does not work.
What should be done with unused gate inputs on the breadboard?
Tie every unused input to the 5 V rail or to ground, as the logic needs. A floating input, especially on a CMOS gate, can drift between high and low, so the output flickers or the IC draws extra current. Unused outputs can be left unconnected.
Why do flip-flop experiments use the debounced push-buttons instead of plain switches?
A plain switch contact bounces for a few milliseconds when pressed, giving several quick pulses. A flip-flop or counter counts every one of them, so the result jumps by more than one. The debounced push-buttons give one clean pulse per press, and the clock gives steady pulses at a chosen rate.
How much load can be taken from the breadboard supply rails?
The adjustable rails are rated 0.5 A each and the +5 V rail 1 A, with current limiting and short-circuit protection. A short or a heavy load makes the rail voltage fall rather than damaging the station. Keep to logic ICs, LEDs and small op-amp circuits; motors, lamps and relays need their own supply.
What power supply does the Digital Lab Station use?
It runs from an isolated supply for 230 V AC, 50 Hz mains. From it the station gives a fixed +5 V rail and adjustable 0 to +15 V and 0 to -15 V rails, all current limited. Give your mains voltage and plug type in the enquiry, so the right supply is packed.
What is included with each Digital Lab Station?
Each station has the 830-point breadboard, eight switches, eight LEDs, two debounced push-buttons and the clock and pulse outputs. It comes with patch leads, jumpers, a starter kit of logic ICs and passive parts, the isolated mains supply and a user manual.
