Power Electronics Lab
Product Code : JA-BT-1494

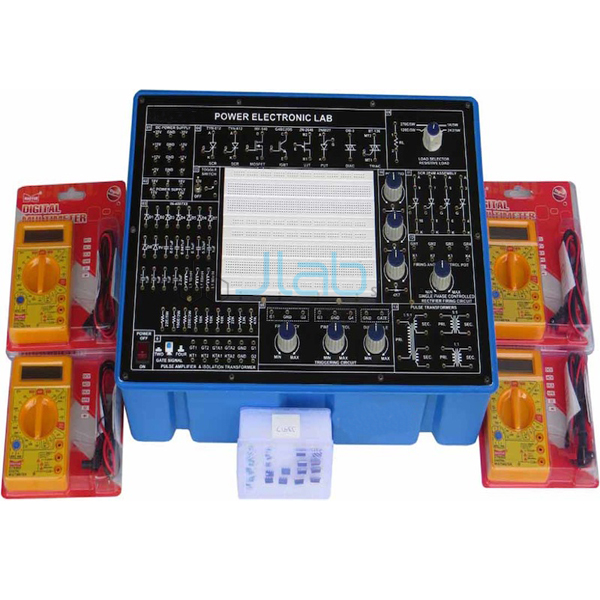

The Power Electronics Lab is a board-level trainer for thyristor and transistor power circuits. It carries four 600 V, 2 A SCRs, an IGBT, a MOSFET, a UJT, a DIAC, a TRIAC and a PUT. Pulse transformers, load resistors and inductors are also fitted. On-board supplies, a five-output triggering circuit and a 0 to 180° firing control let students build and test converter circuits.
Specifications of the Power Electronics Lab
| Product code | JA-BT-1494 |
|---|---|
| Mains input | 230 V AC, 50 Hz, with a protected input and an enclosed supply; units built for 220 V show that rating on the supply plate |
| Training supplies | Separate isolated low-voltage circuits: ±5 V at 100 mA, ±12 V at 150 mA, ±15 V at 50 mA and ±35 V at 50 mA DC; 18-0-18 V and 15-0-15 V AC at 50 mA |
| Triggering circuit | 5 gate outputs, 40 Hz to 900 Hz, 12 V amplitude; PWM duty cycle of G1 to G4 variable from 0 to 100% |
| Firing control | Single-phase rectifier with 0 to 180° firing angle control; firing circuit with four isolated gate outputs |
| Power devices | 4 SCRs 2P4M, 600 V, 2 A; IGBT G4BC20S; MOSFET IRF540; UJT 2N2646; DIAC DB3; TRIAC BT136; PUT 2N6027 |
| Pulse transformers | 2 x PT4502, 1:1; 1 x PT4503, 1:1:1 |
| Capacitors, diodes and inductors | Capacitors from 0.01 to 2.2 microfarad; 1N4007 diodes (8) and a 9 V zener; inductors 10 mH (1) and 68 mH (2) |
| Resistors and controls | Load resistors 120 ohm, 270 ohm, 1 kilohm and 2.2 kilohm, 5 W each; 22 ohm 5 W; 100 ohm and 220 ohm 2 W; 10, 22, 33 and 47 kilohm; potentiometers 4.7 kilohm (2) and 1 megohm; SPST toggle switch |
| Manufacturer | JaincoLab, Ambala, India |
Power circuit practicals on the board
- Half-wave controlled rectifier. Wire one SCR in series with a load resistor on the AC supply and fire it from the firing circuit. Step the firing angle from 0 to 180° and record the load voltage waveform on the 30 MHz Oscilloscope.
- Inductive load and freewheeling. Add the 68 mH inductor in series with the load and watch the current carry on after the supply reverses. Then fit a 1N4007 across the load as a freewheeling diode and compare the waveforms.
- UJT relaxation oscillator. Build the oscillator with the 2N2646 and a pulse transformer, and trigger an SCR from it. Compare the pulses with those of the ready-made UJT Relaxation Oscillator board.
- MOSFET switching. Drive the IRF540 from a PWM gate output, vary the duty cycle from low to high and note the change in average load voltage. Compare the result with the DC Step Down Mosfet Chopper.
Frequently Asked Questions
Why are the SCR gate pulses passed through pulse transformers?
In a bridge, the cathodes of the SCRs sit at different voltages, so one common gate drive cannot reach them all. A pulse transformer passes the firing pulse across an insulation barrier, so each gate is driven against its own cathode. It also keeps the control circuit apart from the power circuit.
How does the firing angle change the output of the controlled rectifier?
The SCR blocks until it is fired, then conducts for the rest of that half cycle. A small firing angle lets most of each half cycle through, so the average output is high. As the angle moves towards 180°, less of the half cycle passes and the average output falls towards zero.
What does a freewheeling diode do in an SCR circuit with an inductive load?
An inductor keeps its current flowing when the supply voltage reverses. Without a diode, that current holds the SCR on into the negative half cycle and the output goes negative. The freewheeling diode gives the current another path, so the SCR turns off at the zero crossing.
How should students connect an oscilloscope to the power circuits safely?
Keep the oscilloscope earthed through its mains plug. Take readings on the isolated low-voltage training circuits, or feed the board through an isolation transformer. The probe earth clip then cannot short a live point. Check every connection with the power off before switching on.
What mains input does the Power Electronics Lab need?
It is built for 230 V AC, 50 Hz, with a protected input and an enclosed supply. The training circuits run from separate isolated low-voltage outputs. Units built for 220 V show that rating on their supply plate, so check the plate when you add boards to an existing lab.
What voltage and current ratings do the power devices on the board have?
The four SCRs are type 2P4M, rated 600 V and 2 A. The other devices are named by part number: IGBT G4BC20S, MOSFET IRF540, UJT 2N2646, DIAC DB3, TRIAC BT136 and PUT 2N6027. Their full ratings are in each part datasheet, which a tender can quote.
