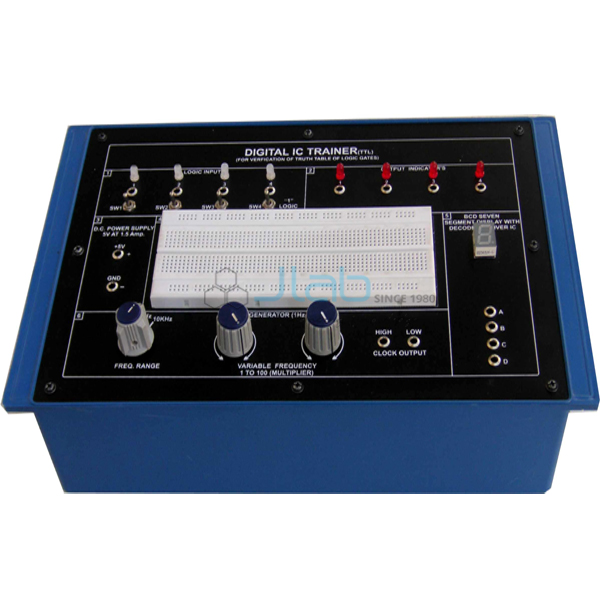

Digital IC Trainer TTL

Digital IC Trainer TTL

Product Code : JA-BT-1491

Digital IC Trainer TTL

Specifications:

Output D.C. Voltage:

  • Fixed 5V ±1%

Output current:

  • 1.5 Amp

Load regulation:

  • ±1% of the highest specified output voltage. (No load to full load)

Ripple and noise:

  • less than 5 mV

Variable clock frequency

  • 1 Hz -100 Hz
  • 100 Hz -10 KHz
  • 10 KHz - 1 MHz

Logic inputs:

  • Four switches for High/Low

Output indicators:

  • Two 5 mm bright Red LEDs

Seven segment display:

  • “Common Anode” type Red LED

Bread board:

  • Half main strip for connections & One full main strip each set for ICs

Operating conditions:

  • 0 to 40°C and 95% R.H. at 40°C

Logic gates provided:

  • OR (7432), AND (7408), NOT (7404) NAND (7400), NOR (7402) & EX-OR (7486)

Extra features:

  • Other ICs can also be used to perform required experiments with any gates/address etc

Input voltage:

  • 230 V ±10% at 50 Hz A.C. Mains

Other Information:

Pay Mode Terms:

  • T/T (Bank Transfer)

Port of Dispatch:

  • India

Delivery Time:

  • 4Weeks

Packaging Details:

  • Corrugated Box
