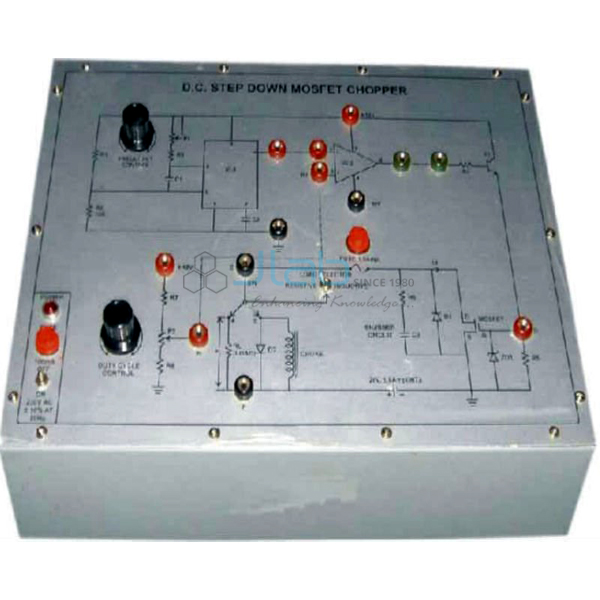

DC Step Down Mosfet Chopper

DC Step Down Mosfet Chopper

Product Code : JA-PET-1445

DC Step Down Mosfet Chopper

  • Looking to the recent requirement of educational institutions, we have developed Omega Type.
  • D.C. Step down mosfet chopper.
  • Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

  • To study D.C. Step down Mosfet Chopper

Features :

The board consists of the following built-in parts:

  • ± 12 Volt D.C. at 100mA, regulated Power Supply
  • 20 Volt DC at 1A, regulated Power Supply
  • IC for triangular pulse generation
  • IC to drive MOSFET
  • MOSFET
  • Two potentiometer for varying frequency and duty cycle
  • Adequate no. of other Electronic Components
  • Mains ON/OFF switch and Neon Jewel light for indication
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length 1/2 metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Other Apparatus Required:

  • Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
