AC Regulators Using Triac Anti Parallel Thyristor
Product Code : JA-PET-1432

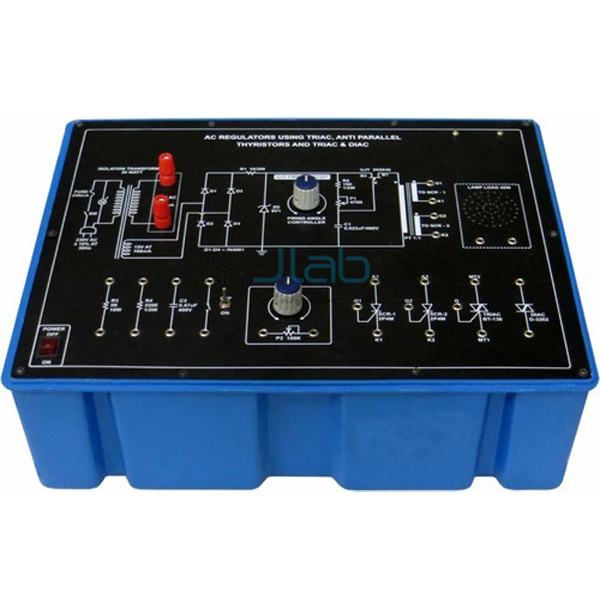

AC Regulators Using Triac Anti Parallel Thyristor
- Power Electronic Training Board has been designed specifically for to study A.C. Regulators using triac, anti parallel thyristor and triac & diac.
- Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
- A.C. Regulator using a Triac
- A.C. Regulator using Thyristor connected in anti parallel
- A.C. Regulator using a triac & a diac (with R.C. triggering circuit)
Features:
The board consists of the following built-in parts :
- 230VA.C. Isolated Transformer, Power 50 Watt
- 9V D.C. at 100mA Zener Regulated Power Supply
- Two silicon controlled rectifiers (SCR’s)
- Uni Junction Transistor (UJT)
- TRIAC
- DIAC
- Pulse Transformer 1:1:1
- Two potentiometers one for controlling UJT firing angle & other for varying load
- Bulb 40W, 230VA.C
- Mains ON/OFF switch, Fuse and Jewel light
- The unit is operative on 230V ±10% at 50Hz A.C. Mains
- Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
Weight:
- 6 Kg. (Approx.)
Dimension:
- W 300 x H 140 x D 200
Other Apparatus Required:
- Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed) /with isolation transformer for unearthing
