Voltage Commutated Thyristorised Chopper
Product Code : JA-PET-1439

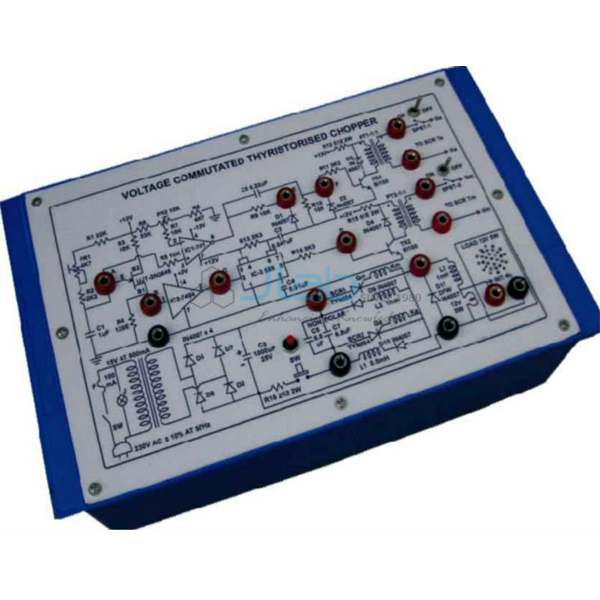

Voltage Commutated Thyristorised Chopper
- Power Electronic Training Board has been designed specifically for the study of the step down voltage commutated thyristorised chopper.
- Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
- To study the step down voltage commutated thyristorised chopper
Features:
The board consists of the following built-in parts:
- ±12V D.C. at 100mA IC regulated power supply internally connected
- 5V D.C. at 100mA IC regulated power supply internally connected
- Bridge Rectifier for making D.C. voltage
- UJT as relaxation oscillator
- Op-Amp. IC
- Timer IC
- Hex Inverter Gate IC
- Two SCR’s
- Two pulse transformer 1:1:1
- Two NPN transistor
- Two SPST switch
- Push-To-On switch.
- Freewheeling diode
- Inductors
- Bulb 12V, 6W
- Adequate no. of other Electronic Components
- Mains ON/OFF switch, Fuse and Jewel light
- The unit is operative on 230V ±10% at 50Hz A.C. Mains
- Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
Weight:
- 3 Kg. (Approx.)
Dimension:
- W 340 x H 110 x D 210
Other Apparatus Required:
- Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
Note:
- Specifications are subject to change
