Wind Speed Sensor
Product Code : JA-EF-6621

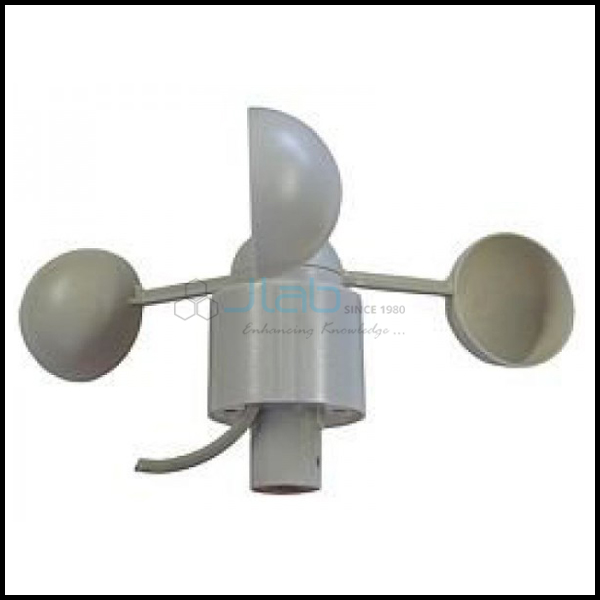

The Wind Speed Sensor is a three-cup anemometer sensor for school and college weather stations. The standard version runs on 12 to 24 V and gives a 4-20 mA output. A data logger or panel meter scales this signal to wind speed. It covers 0 to 45 m/s and fixes to a four-screw horizontal flange.
Specifications of the wind speed sensor
| Product code | JA-EF-6621 |
|---|---|
| Sensor type | Three-cup rotor* |
| Range and resolution | 0 to 45 m/s; 0.1 m/s* |
| Starting threshold | Below 0.5 m/s* |
| Accuracy | ±(0.3 + 0.03v) m/s, where v is the wind speed* |
| Output | 4-20 mA in the standard version; pulse, 0-5 V and RS485 versions to order* |
| Supply | 12 to 24 V DC in the standard version; 5 V supply with the matching output versions* |
| Protection | IP65* |
| Mounting | Four-screw horizontal flange, with free clearance round the rotor* |
| Manufacturer | JaincoLab, Ambala, India |
* Standard JaincoLab specification for new builds.
Wind measurement with the sensor
- Logging a school day. Wire the sensor to a logger input for a 4-20 mA loop and enter the range in the logger scaling. Log through the day and plot the mean speed and the gusts against time.
- Checking the mast reading. On a steady day, hold the hand-held Anemometer at the height of the sensor and compare the two readings. Discuss why a reading taken lower down is usually smaller.
- Speed and direction together. Mount the sensor beside a Weather Vane and record both at the same times, then draw a simple wind rose for the week.
- From numbers to the Beaufort scale. Convert the logged m/s values to Beaufort numbers and compare them with what students see outside: smoke, leaves, branches and flags.
Frequently Asked Questions
Why does the wind speed sensor use a 4-20 mA output instead of a voltage?
The current is the same all the way round the loop, so long cable runs do not change the reading. A current signal also picks up less electrical noise than a small voltage. A reading of zero milliamps means a broken wire rather than calm air, so faults are easy to spot.
Why should we record the height at which the anemometer is mounted?
Wind speed rises with height above the ground, because the ground and nearby objects slow the air. Readings from two stations can only be compared if their heights are known. Mount the sensor in the open, well clear of walls and trees, and note the height in the station record.
How do wind speed readings in m/s compare with the Beaufort scale?
The Beaufort scale names wind strength from calm to hurricane force by its effects on smoke, trees and the sea. Students convert their logged m/s values to Beaufort numbers with a printed table. They then check the result against what they can see outside at the same time.
Which output versions of the wind speed sensor can we order?
The standard version gives 4-20 mA on a 12 to 24 V supply. Pulse, 0-5 V and RS485 versions can be ordered to suit other loggers, with the matching supply. Tell us the logger or controller you use, so the right version is built for your order.
What should we tell you about cable length and mounting before ordering?
Give the distance from the mast to the logger and the type of mast or bracket you plan to use. The sensor fixes to a four-screw horizontal flange and needs free space round the rotor. A 4-20 mA loop copes well with long cable runs.
