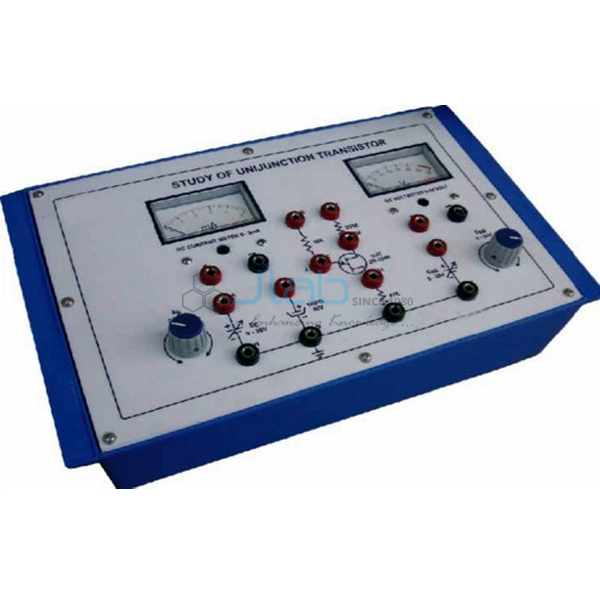

Unijunction Transistor

Unijunction Transistor

Product Code : JA-AET-1465

Uni junction Transistor

Object:

  • To plot V-I characteristics of a given U.J.T. (Uni junction Transistor)
  • To use the given U.J.T. as a Relaxation Oscillator

Features:

  • Two 0-30V DC at 50mA, continuously variable regulated Power Supplies
  • D.C. Voltmeter, 65mm rectangular dial to read 0-30V
  • D.C. Ammeter, 65mm rectangular dial to read 0-5mA
  • Uni junction Transistor
  • Adequate no. of other electronic components
  • Mains ON/OFF switch, Fuse and Jewel light

Specifications:

  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
  • Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Weight:

  • 3 Kg. (Approx.)

Dimension:

  • W 340 x H 110 x D 210

Other Apparatus Required:

  • Cathode Ray Oscilloscope 20MHz
