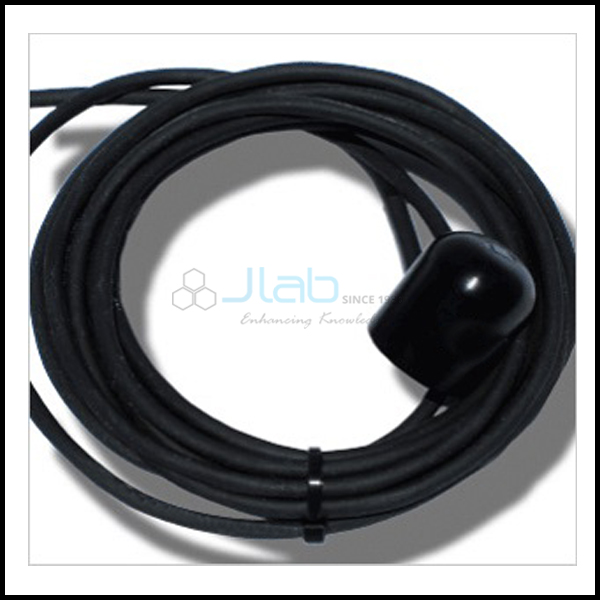

Ultraviolet Sensor
Product Code : JA-EF-6619
The Ultraviolet Sensor measures UVA radiation from sunlight or a lamp in environmental science and physics practicals. A photodiode behind an optical filter responds to the band of about 320 to 400 nm. The standard analogue version gives 0 to 5 V on a 5 V regulated supply, for logging on a compatible educational data logger.
Specifications of the ultraviolet sensor
| Product code | JA-EF-6619 |
|---|---|
| Sensor | Photodiode with an optical filter* |
| Spectral band | UVA, about 320 to 400 nm* |
| Quantity read | UVA irradiance; not a UV index or UVC reading |
| Irradiance range | 0 to 20 W/m²* |
| Output | Amplified analogue, 0 to 5 V, in the standard version* |
| Supply | 5 V regulated* |
| Interface | For a compatible educational data logger* |
| Manufacturer | JaincoLab, Ambala, India |
* Standard JaincoLab specification for new builds.
UV practicals with the sensor
- Sun, shade and cloud. Read the sensor in full sun, in the shade of a tree and under a shelter. Log through the day to find when UVA is highest and how much shade cuts it.
- Materials that stop UVA. Hold window glass, clear plastic, fabric and a sunglass lens over the sensor in turn. Work out the share of UVA each one blocks and rank them.
- Beads and numbers. Lay a few U.V. Detecting Beads beside the sensor. Compare their colour with the reading in sun, shade and indoors behind glass.
- Weather and UV. Log UVA alongside the readings of the Virtual Weather Station and compare clear and cloudy days.
Frequently Asked Questions
Can the ultraviolet sensor give a UV index reading?
No. It responds to UVA, about 320 to 400 nm, and reads irradiance in watts per square metre. The UV index is weighted towards the shorter UVB band, which causes most sunburn, so it cannot be worked out from a UVA reading. Use the sensor to compare UVA levels.
How do students test how much UVA a pair of sunglasses blocks?
Point the sensor at the sun and note the reading. Hold the lens flat over the sensor at the same angle and read again. The fall in the reading, as a share of the first value, is the UVA blocked. Take each reading three times and use the average.
How can the sensor be used with UV beads in a sun safety lesson?
The beads show by their colour that UV is present, and the sensor puts a number on it. Students record the reading and the bead colour in sun, in shade and under cloud. They then discuss when sun protection matters most during the school day.
Will the ultraviolet sensor work with the data logger we already have?
It works with a logger input that reads 0 to 5 V and can supply a regulated 5 V. Set the scaling for the irradiance range in the logger software. Name the make and model of your logger in the enquiry, so the connection can be matched.
What should a tender state for a classroom UV sensor?
State a UVA sensor with a photodiode and optical filter, a band of about 320 to 400 nm and a 0 to 20 W/m² range. Add an amplified 0 to 5 V output on a 5 V regulated supply and the data logger it must work with.
