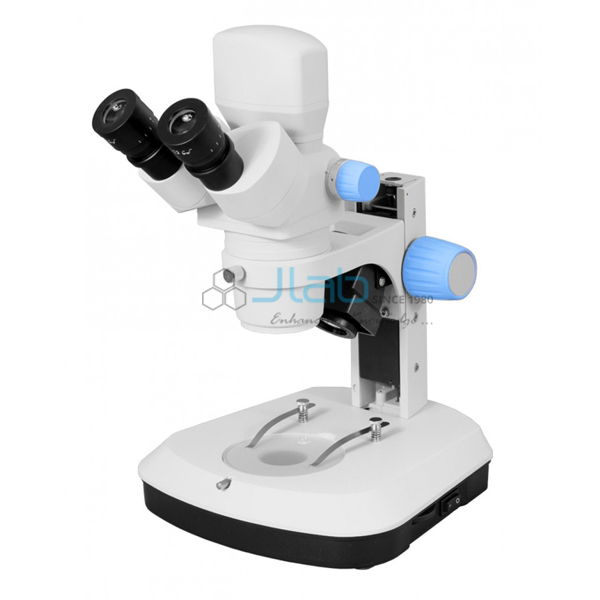

Super Widefield Digital Zoom Stereo Microscope
Product Code : JA-M-8125
|
Magnification |
Standard magnification: 6.6X~50X. Magnification range can be 3.3X~200X with auxiliary objectives and optional eyepieces |
|
Viewing Head |
Binocular Digital, 45° inclined and 360° rotatable. |
|
Interpupillary distance adjustable from 54mm-76mm. |
|
|
Eyepiece |
10X wide-field high eyepoint |
|
Two diopter adjustment of +/-5 on both eyepieces |
|
|
Paired 10X/23mm, optional eyepieces WF20X/12mm and reticle eyepieces WF10X/23mm available(not included) |
|
|
Eyeshades on both eyepieces |
|
|
The eyepieces can be locked on with setscrews to prevent students from removing them. |
|
|
Zooming Body |
Standard objective zooming magnification: 0.66X ~ 5X, Zoom ratio: 1:7.6, parfocal, working distance 110mm |
|
Ergonomically positioned dual, graduate, bilateral zoom control knobs |
|
|
Auxiliary objectives: 0.5X/189mm working distance, 2.0X/36mm working distance available (not included) |
|
|
Working Distance |
Standard working distance of 110mm, working distance range 36mm~189mm with auxiliary lens |
|
Focusing Arm |
Heavy duty rack and pinion focusing with slip clutch |
|
Two focusing knobs with tension adjustment, 140mm focus distance range |
|
|
Stage |
Includes one 99.5mm glass stage plate and one 99.5mm reversible black/white stage plate. |
|
Locked-on spring-mounted stage clips |
|
|
2D Travelling stage available (not included) |
|
|
Illumination |
Top light: diagonally adjustable top incident 3W LED light. Brightness can be continuously adjusted independently |
|
Bottom light: transmitted 3W LED light. Brightness can be continuously adjusted independently |
|
|
Built in illumination system allows three ways of illumination: transmitted, incident, or dual lighting. |
|
|
Top and bottom lights are controlled respectively |
|
|
Imaging |
Trinocular head available 20/80 light splitting ratio. |
|
Trinocular synchronization imaging, eyepiece observation synchronized with digital imaging. The splitting of the light does not need to be switched. |
|
|
Built in digital Camera, dependable performance and convenient operation. |
|
|
Digital Camera |
Dustproof, moisture-proof, against disassemble, built-in digital chip, integrated design |
|
Resolution: 5.0MP |
|
|
Image device, 1/2' CMOS colorful |
|
|
USB2.0 connection, without external power supply |
|
|
Data output: 480mps |
|
|
Included software: OPTPro |
|
|
Available for WINDOWS 2000/ XP/7/Vista system |
Optional Auxiliary Lens and Eyepieces
|
Auxiliary Lens
Item No. |
Objective |
Working Distance |
10x Eyepiece |
20x Eyepiece |
||
|
Total |
Field Diameter |
Total |
Field Diameter |
|||
|
Standard |
1X |
110mm |
6.6X - 50X |
34.8 - 4.6 |
13.2X -100X |
18.0 - 2.4 |
|
Jaincolab |
0.5X |
189mm |
3.3X - 25X |
69.7 - 9.2 |
6.6X - 50X |
36.4- 4.8 |
|
Jaincolab |
2.0X |
36mm |
13.2X -100X |
17 - 2.3 |
26.4X - 200X |
9.0-1.2 |
