Single Phase Series Inverter

Single Phase Series Inverter

Product Code : JA-PET-1437

Single Phase Series Inverter

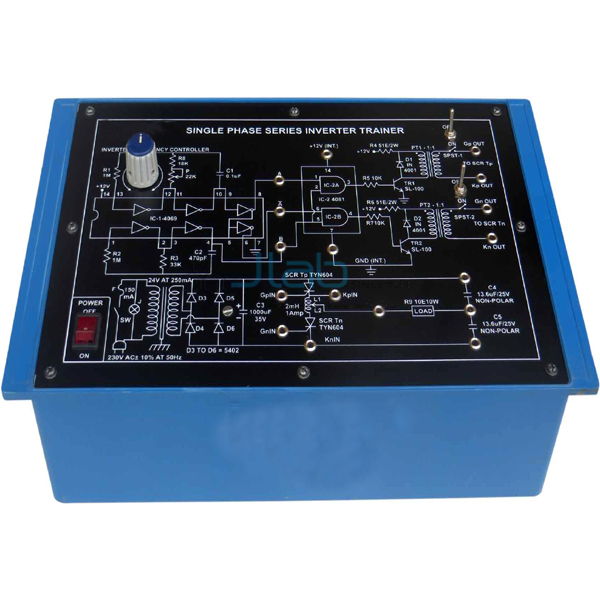

  • Power Electronic Training Board has been designed specifically for study of the Single Phase Series Inverter.
  • Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

  • To study the Single Phase Series Inverter

Features:

The board consists of the following built-in parts:

  • 12V DC at 100mA fixed regulated Power Supply
  • Bridge rectifier for making DC voltage
  • Hex Inverter IC
  • Quad, 2-input AND gate IC
  • Two Silicon Controlled Rectifiers (SCR’s)
  • Two Pulse transformer 1:1
  • Potentiometer for inverter frequency controller
  • Center taped Inductor
  • Two NPN transistor
  • Adequate no. of other Electronic Components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains.
  • Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Weight:

  • 3 Kg. (Approx.)

Dimension:

  • W 340 x H 110 x D 210

Other Apparatus Require:

  • Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
