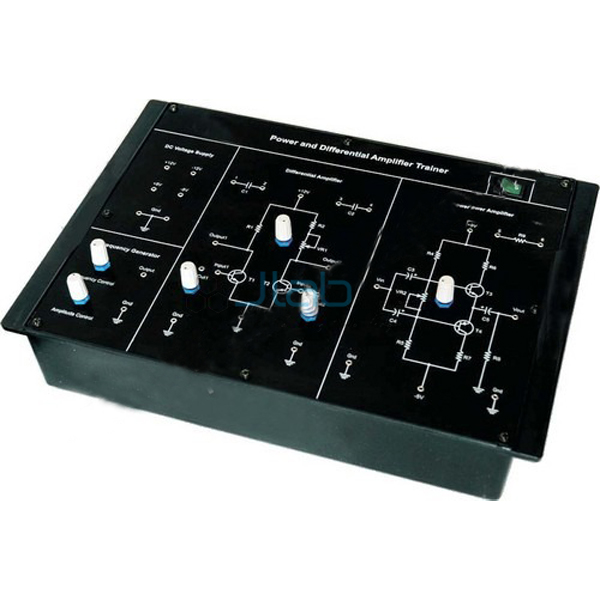

Differential and Audio Power Amplifier Trainer

Differential and Audio Power Amplifier Trainer

Product Code : JA-AET-1476

The Differential and Audio Power Amplifier Trainer is used to study a differential amplifier and an audio power amplifier. The differential stage uses a matched 2N3904 pair. The power stage is an LM386 class-AB audio amplifier, and an LM358 handles signal conditioning. Built-in supplies give +12 V, -12 V, +5 V, -5 V and 0 to 1 V. A sine generator covers 800 Hz to 8 kHz.

Specifications of the differential and audio power amplifier trainer

Product codeJA-AET-1476
Circuits studiedDifferential amplifier; audio power amplifier
Differential stageMatched 2N3904 NPN transistor pair
Power stageLM386 low-voltage audio power amplifier, class AB
Signal conditioningLM358 op-amp, a separate device
Optional stageComplementary 2N3904/2N3906 low-power emitter-follower stage for crossover-distortion experiments, as an optional addition*
DC supplies+12 V, -12 V, +5 V and -5 V fixed; 0 to 1 V variable
Sine wave generator800 Hz to 8 kHz, 0 to 5 Vpp
SchematicShows the actual part numbers and package pin-outs; an equivalent part is identified by its own part number
Mains230 V ±10%, 50 Hz; 350 mA slow-blow fuse
ManufacturerJaincoLab, Ambala, India

* Standard JaincoLab specification for new builds.

Amplifier practicals on the trainer

  • Balance of the differential pair. With no input signal, measure the two collector voltages with a Digital Multimeter. A small difference shows how closely the matched pair is balanced.
  • Differential and common-mode gain. Drive one input from the built-in sine generator, then both inputs together, and read the outputs on the 30 MHz Oscilloscope. Work out the CMRR from the two gains.
  • Crossover distortion on the optional stage. With the optional complementary 2N3904/2N3906 emitter-follower stage, feed a small sine and look for the flat step where the output crosses zero. Then pass the same signal through the LM386 class-AB stage and compare the two outputs.
  • A discrete push-pull stage for comparison. Repeat the crossover measurements on the Push Pull Amplifier board and compare them with the LM386 audio stage of this trainer.

Frequently Asked Questions

Why does the differential stage use a matched pair of 2N3904 transistors?
A differential amplifier compares two halves of one circuit. If the two transistors differ in base-emitter voltage or gain, the halves are out of balance and the output shows an offset with no input. A matched pair keeps that offset small and improves the rejection of signals common to both inputs.

How do students work out the CMRR on the trainer?
First measure the differential gain with the sine on one input and the other input at ground. Then join the inputs, apply the same sine to both and measure the much smaller common-mode gain. The CMRR is the differential gain divided by the common-mode gain, usually given in decibels.

Can crossover distortion be studied on the trainer?
The fitted LM386 is a class-AB audio stage, so it shows little crossover distortion. For a class-B lesson, order the optional complementary 2N3904/2N3906 emitter-follower stage. With a small input, students then see the flat step at each zero crossing, where neither transistor conducts.

Does the trainer need an external power supply or signal generator?
No. The +12 V, -12 V, +5 V and -5 V supplies are built in. So are the 0 to 1 V variable supply and the 800 Hz to 8 kHz sine generator. The board runs from 230 V, 50 Hz mains through a 350 mA slow-blow fuse. Only an oscilloscope and a meter are needed for readings.

Does the trainer come with a circuit diagram that shows the part numbers?
Yes. The schematic gives the actual part numbers and package pin-outs of the active devices: the matched 2N3904 pair, the LM386 and the LM358. If an equivalent part is fitted, it is named by its own part number, so a lab technician can order the right spare.
