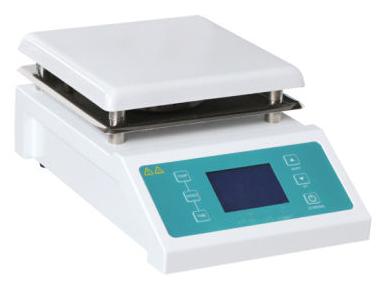

Laboratory Hot Plate with Magnetic Stirrer
Product Code : JL-LEP-10396
Specifications:
Heat samples, glasswares and its contents, solutions, and substances, with constant stirring.
Boiling of water
To sterilize glasswares and other materials uniformly
Dissolving buffers and reagents with constant striring
Preparing media
Concentrating samples and to prepare chemicals used in scientific research
Agitates the liquid to speed up the reaction and mixes components (solid and liquid to get homogeneous mixtures
Type : Digital
Top plate Material : Ceramic coated aluminum plate (chemical /acid resistant with the following dimensions:
Length : 180 mm (minimum)
Width : 180 mm (minimum)
Color of top plate : White
Material of body : Powder coated cast aluminum with the following dimensions:
Length : 206 mm
Width : 307 mm
Height : 99 mm
Color of body: Midnight blue
Maximum Operating Temp.: 380 á´¼C
Temperature accuracy : ± 0.3 °C at set temperature
Stirring capacity: 20 Liters
Motor rating: 9/4 W
Speed: 80-1500 rpm
Control resolutio: 5 rpm
Temperature range and accuracy : Max 380 °C
Temperature resolution: 0.1 °C for display: ; 0.5 °C control 14. 14.
Temperature uniformity: specially designed heating module temperature difference 10 % less
Heating power consumption: 600 W
With digital LCD with backlight display
With digital feedback controller with joggle shuttle switch(Turn + Push)
With stirring bar: 3 cm bar included, usable: Up to 5 cm bar
With over temperature protection
With power cord, AC AdapterQuick and easy adjustment knob
Control: Quick and easy adjustment knob
With safety LEDs to indicate when heating function has been activated
Power: 220-240 V AC, 50/60 Hz, 800 W
With built-in support rod mount, thumbscrew, accommodates rods up to 13 mm in dia.
Stand rod: Stainless steel, Ф= 12 mm
Length: Ф450mm
With Thumb screw
With external direct contact temperature probe with the following dimensions:
a) Diameter: 4 mm
b) Length: 250 mm
c) Cable: 190 mm
With plug for temperature probeWith quick adjustment knob and LED indicator
With holder/ clamp/clip for temperature probe . Stirring speed up to 1500 rpm
As per DEPED Guidelines.
