Fractures, Faults and Dislocations Model
Product Code : JA-AM-5964

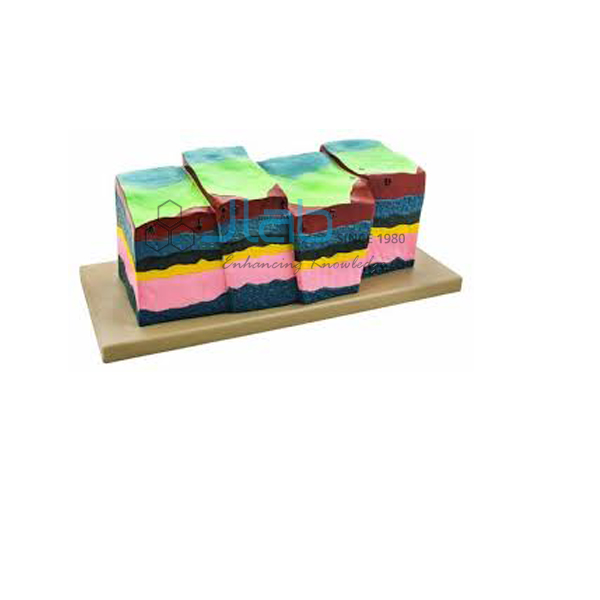

The Fractures, Faults and Dislocations Model shows five structural features of rock layers in cross section, formed along fault planes and fractures. The layers are coloured, so each break and displacement is easy to follow. The model is about 300 x 200 x 100 mm, in unbreakable material, on a base with a numbered English key card.
Specifications of the fractures, faults and dislocations model
| Product code | JA-AM-5964 (order code kept from the earlier listing) |
|---|---|
| Shows | Five structural features of rock layers in cross section, related to fault planes and fractures |
| Size | About 300 x 200 x 100 mm* |
| Stages | Labelled block stages* |
| Material | Unbreakable material, coloured |
| Mounting | On a base |
| Identification | Numbered, with an English key card |
| Subject | Structural geology and physical geography |
| Manufacturer | JaincoLab, Ambala, India |
* Standard JaincoLab specification for new builds.
Teaching faults and fractures with the model
- Crack or fault. Students find each feature on the model and decide whether the layers on both sides still line up or have been moved along the break.
- Normal and reverse movement. Set the model beside the Normal Fault Model and the Reverse Fault Model. Students say which block has moved down or up in each case.
- Measuring displacement. Pick one coloured layer, find it on both sides of a fault and measure the offset with a ruler. Compare the offsets of the different features.
- From faults to mountains. Finish on the Fold and Fault 3D Model to show how folding and faulting together shape a landscape.
Frequently Asked Questions
What is the difference between a fracture and a fault?
A fracture, or joint, is a crack where the rock has broken but the two sides have not moved along it. A fault is a fracture where the blocks on either side have slipped past each other. On the model, students look for layers that still line up and layers that are offset.
How can you tell the hanging wall from the footwall?
On a sloping fault, the hanging wall is the block above the fault plane and the footwall is the block below it. If the hanging wall has moved down, the fault is normal. If it has moved up, the fault is reverse. Students can mark both blocks on the model.
How do students find the amount of movement on a fault?
They follow one coloured layer to the fault and find the same layer on the far side. The distance between the two broken ends, along the fault plane, is the displacement. Comparing it for each feature shows which fault has moved most.
What size should a tender give for this geology model?
Give a coloured cross-section model of five structural features, about 300 x 200 x 100 mm. Add the base, the numbered English key card and the quantity per laboratory.
What is the fractures and faults model made of?
It is made of a coloured, unbreakable material, so it stands up to regular handling in class. Each rock layer has its own colour, which makes the breaks and offsets easy to see from a distance. The model sits on a base for display.
Other structural geology models
- Horizontal Strata
- Normal Fault Model
- Reverse Fault Model
- Deformation of The Earth Folds and Fault 3D Model
