Flow meter Measurement Apparatus

Product Code : JA-FMAHLE-9939
Flow
meter Measurement Apparatus
Description:-

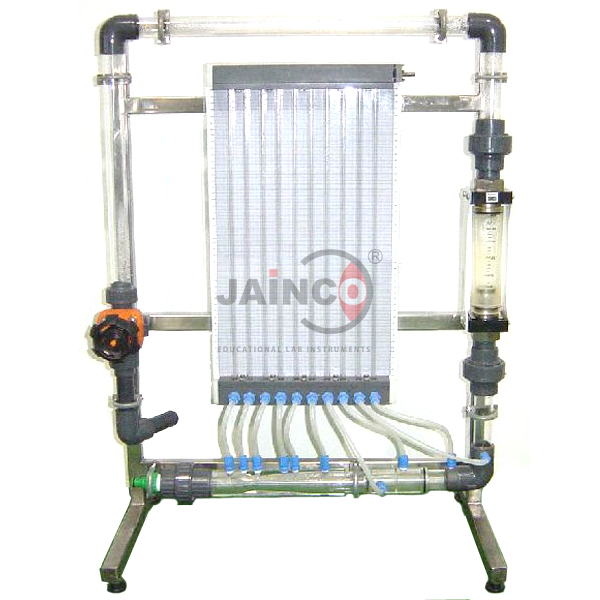

The Flowmeter
Measurement Apparatus consists of a Venturi meter, variable area meter and
orifice plate, installed in a series configuration to permit direct comparison.
A flow
control valve permits variation of the flow rate through the circuit.
The circuit and manometer are attached to a support framework which stands on
the working top of the Hydraulics Bench.
Pressure
tappings are incorporated so that the head loss characteristics of each flow
meter may be measured.
These
tappings are connected to an eight tube manometer bank incorporating a manifold
with air bleed valve. Pressurisation of the manometers is facilitated by a hand
pump.
The bench is used as the source of water supply and for calibrating
volumetrically each flow meter.
Specification:-
Pressure
tappings to measure head loss from each meter.
Quick
release fitting for easy connection to hydraulics bench.
Venturi
meter, variable area meter and orifice plate with control valve.
Supplied
with manometer board with eight tubes.
Technical
Details:-
Item |
Flowmeter
Measurement Apparatus |
Manometer
range |
0 to 440mm |
Number of
manometer tubes |
8 |
Orifice
plate diameter |
20mm |
Variable
area meter |
2 to 20
litres/min |
Venturi
dimensions |
Throat
diameter: 15mm |
Upstream
pipe diameter: 31.75mm |
|
Upstream
taper: 21o inclusive |
|
Downstream
taper: 14oinclusive |
