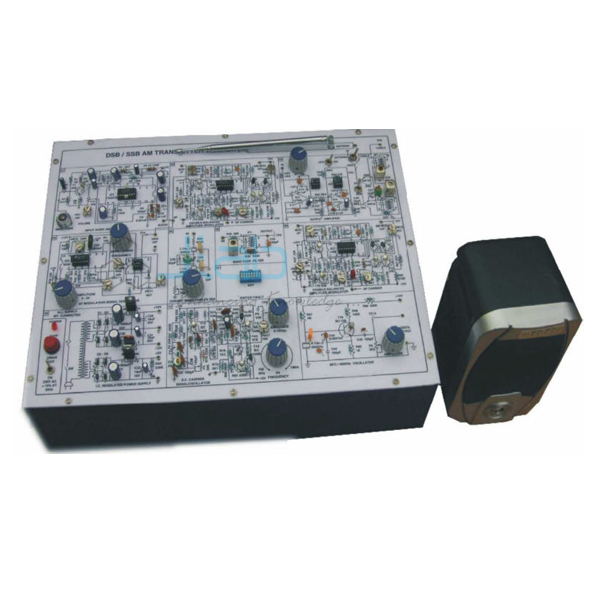

DSB and SSB AM Transmitter Trainer

DSB and SSB AM Transmitter Trainer

Product Code : JA-CT-1510

DSB And SSB AM Transmitter
Object:
Study of carrier frequency generation

Study of DSB / SSB AM Generation & Transmission

Study of Transmitter tuned circuits

Specification:
The board consists of the following built-in parts:
AF Modulating signal generator : Sine wave

Frequency Range : 300 Hz to 3.4 KHz

Amplitude : 0 to 5 Vpp

RF carrier signal oscillator :
Frequency Range : 100 KHz to 1 Mhz

Amplitude : 0 to 10 Vpp

Modulators (Two Nos) : Double Balanced Amplitude modulator

Ceramic Band Pass Filter : 452 KHz to 458 KHz

Band Pass Filter : 1 No

Switch faults : 8 Nos

POWER SUPPLY : ± 12DC and +5V DC IC Regulated power supply

Test points : 27 Nos

BFO Oscillator : 455 KHz

Input Audio amplifier with Volume Control for modulating external signal from Mike or Tape recorder

Output Amplifier Transmitter: (Gain adjustable) DSB (1MHz), SSB (1.445 MHz) connected to Antenna/cable

Mains ON/OFF switch, fuse and jewel light

Power supply requirement 230V AC, 50 Hz

Dynamic Microphone with 4mm Jack Pin

Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design Procedures, Report Suggestions and Book References

Other Apparatus Required:
Cathode Ray Oscilloscope of 20MHz
