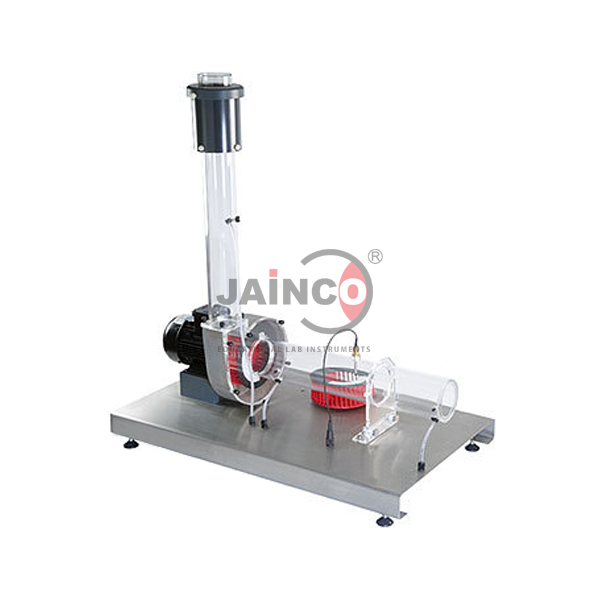

Centrifugal Fan Demonstration Unit
Product Code : JA-FMAHLE-9967
Centrifugal Fan Demonstration Unit
Specification:-
Transparent cover plate on fan volute for visibility.
Supplied with two different, easily interchangeable impellers.
Capable of being linked to a PC (not supplied) via a USB interface console (an essential accessory), which does not require internal access to the computer.
Also allows interfacing to other software packages.
A small-scale centrifugal fan demonstration unit, comprising of an inlet duct, the fan, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.
Facilities for logging, processing and displaying data graphically.
Offers a complete teaching package of coursework and laboratory investigation, complete with a student questions and answers session.
Equipped with electronic measurement sensors for fan head pressure, flow rate (via orifice plate) and air temperature.
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises.
Capabilities:-
Measurement of performance at constant speeds.
Introduction to similarity laws for scale-up.
Measurement of constant-speed machine performance in terms of static total pressures, rotor speed and motor shaft power, as a function of inlet flow.
Measurement of fan efficiency and estimation of impeller power efficiency.
Comparison of student calculations with computer results.
Technical Specification:-
Max Flow Rate: 70 l/s typical
Motor Power rating 550W
Max Head: 0.7KPa
Max fan speed 3000rpm
