BJT Amplifiers and Emitter Follower Trainer
Product Code : JA-AET-1479

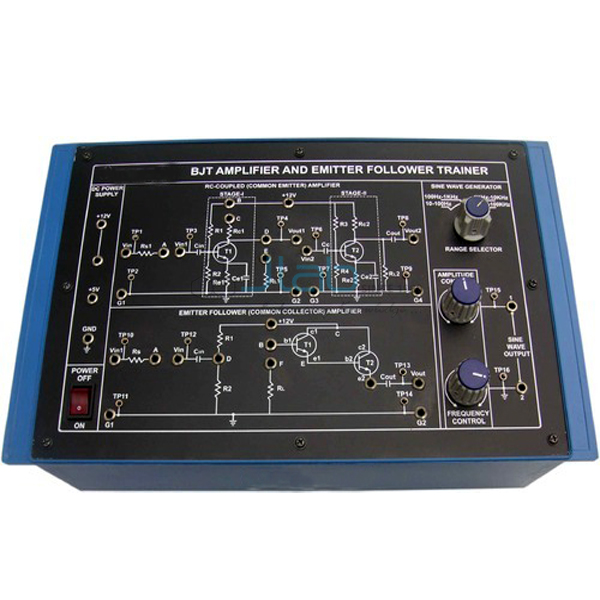

The BJT Amplifiers and Emitter Follower Trainer shows a multistage BJT amplifier and an emitter follower on one board. Socketed 2N3904 NPN and 2N3906 PNP transistors form the common-emitter and emitter-follower stages. Built-in +12 V and +5 V supplies and a 10 Hz to 100 kHz sine generator, 0 to 5 Vpp, drive the circuits.
Specifications of the BJT amplifier and emitter follower trainer
| Product code | JA-AET-1479 |
|---|---|
| Circuits | Multistage BJT amplifier; emitter follower |
| Transistors | 2N3904 (NPN) and 2N3906 (PNP), socketed, for the common-emitter and emitter-follower stages |
| DC supplies | +12 V and +5 V, built in |
| Sine wave generator | 10 Hz to 100 kHz ±10%, 0 to 5 Vpp, variable frequency and amplitude |
| Schematic | Shows the actual part numbers and pin-outs; an equivalent part is named by its own part number |
| Mains | 230 V ±10%, 50 Hz; 500 mA slow-blow fuse |
| Manufacturer | JaincoLab, Ambala, India |
Transistor amplifier practicals on the trainer
- DC bias check. Before any signal is applied, measure the collector, base and emitter voltages of each stage with a Digital Multimeter and record the operating points.
- Stage gain and loading. Measure the gain of the first stage on its own on the 20 MHz Dual Trace Cathode Ray Oscilloscope. Measure it again with the next stage connected and explain the drop.
- Frequency response. Keep the input level fixed and step the built-in generator from 10 Hz to 100 kHz. Plot the overall gain against frequency and mark the upper and lower cut-off points.
- Single-stage follower. Compare the emitter follower on this board with the Emitter Follower CC board, measuring voltage gain and the drop from base to emitter on each.
Frequently Asked Questions
Why use an emitter follower when its voltage gain is below one?
The emitter follower gives current gain, not voltage gain. Its input draws little current and its output can drive a low-resistance load. Placed after a common-emitter stage, it stops the load from pulling down the gain of that stage.
Why does the first stage gain drop when the next stage is connected?
The input resistance of the second stage sits in parallel with the collector load of the first stage. That lowers the effective load, so the first stage gives less voltage gain. Students see it by measuring the first stage alone and then with the second stage joined.
Which DC checks should students make before they connect the signal?
Confirm that the +12 V supply reaches the board, then measure each collector, base and emitter voltage. A collector sitting near the supply, or near the emitter, means the stage is cut off or saturated. Put the bias right first, as no signal reading makes sense at a wrong operating point.
Are the transistors socketed so that damaged ones can be replaced?
Yes. The 2N3904 and 2N3906 transistors sit in sockets, so a lab technician can change a damaged one without soldering. Order a few spares of each with the trainers and keep them in labelled packets, because the NPN and PNP types look alike.
What mains supply and fuse does the trainer use?
It runs on 230 V ±10%, 50 Hz mains and is protected by a 500 mA slow-blow fuse. The +12 V and +5 V supplies are built in. Keep spare fuses of the same rating, because a larger fuse would not protect the board.
