4- Bit Binary Full Adder and Subtractor
Product Code : JA-DET-1526

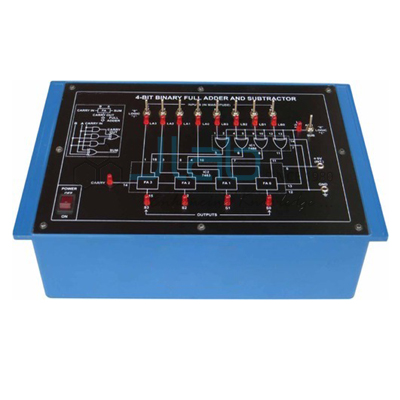

4- Bit Binary Full Adder and Subtractor
Training Board has been designed specifically for the study of phenomena of addition and subtraction of 4-bit binary numbers using 4-bit arithmetic and complementary techniques.
This Training Board uses controlled inverter and full adders to carry out the operations of addition and subtraction.
The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.
Object (To study the operation of 4-bit binary full adder and subtractor for):
Addition of two 4-bit binary numbers
Subtraction of two 4-bit binary numbers
Features:
The board consists of the following built-in parts :
+5V D.C. at 200mA, IC regulated power supply internally connected
4-bit full adder IC
Quad 2-input Ex-OR Gate IC
LEDs for visual indication of status
SPDT switches for logic selection
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
