3D Solids
Product Code : JA-G-3513
The 3D Solids set has 17 transparent plastic geometric solids with teaching notes, sized for whole-class teaching. Because the solids are large and clear, a class can see faces, edges, vertices and curved surfaces from their seats. In the standard build each solid has a nominal longest dimension of 100 mm.
Specifications of the 3D solids set
| Product code | JA-G-3513 |
|---|---|
| Pieces | 17 transparent plastic solids |

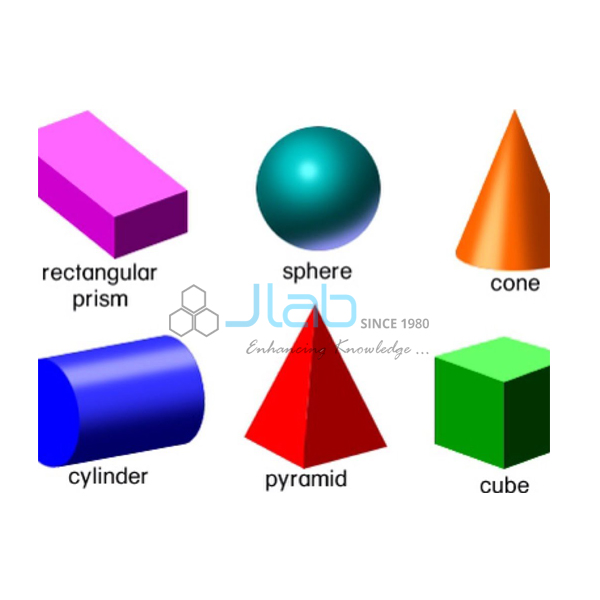

| Shapes named on the listing | Cone, sphere, hemisphere, cube, cylinder, rectangular prism, hexagonal prism, triangular prism and square pyramid |
| Other eight shapes (standard completion) | Pentagonal prism, octagonal prism, triangular pyramid, rectangular pyramid, pentagonal pyramid, hexagonal pyramid, truncated cone and ellipsoid* |
| Size | Nominal longest dimension 100 mm* |
| Material | Transparent plastic |
| Included | Teaching notes |
| Manufacturer | JaincoLab, Ambala, India |
* Standard JaincoLab specification for new builds.
Solid geometry lessons with the large transparent solids
- Faces, edges and vertices. Pupils count each feature on a solid held up at the front and record the totals in a table.
- Matching nets. Each solid is matched with the net that folds into it from the 3D Paper Nets.
- Group follow-up. After the demonstration, groups repeat the counts on the smaller 3D Solids Set.
- Views. Pupils draw the top, front and side views of a solid placed on the desk and measure its edges with a Foot Rulers Plastic.
Frequently Asked Questions
How do pupils count faces, edges and vertices on a transparent solid?
Count each flat or curved face once, and mark it with a small sticker if needed. Edges are where two faces meet and vertices are the corners. On a transparent solid the back edges show through, so pupils are less likely to miss the hidden ones.
What is the difference between a prism and a pyramid?
A prism has two matching ends joined by flat sides, so its cross-section is the same all along its length. A pyramid has one base, and its sides meet at a single point. The triangular prism and the square pyramid in this set show the difference side by side.
How are the solids used to draw top, front and side views?
Place a solid on squared paper and look at it from above, from the front and from one side. Pupils draw each view, then swap drawings and guess the solid. The large size makes every edge easy to see from a desk.
Which 17 shapes are in the large 3D Solids set?
The listing names nine: cone, sphere, hemisphere, cube, cylinder, rectangular prism, hexagonal prism, triangular prism and square pyramid. The standard set completes the seventeen with pentagonal and octagonal prisms, triangular, rectangular, pentagonal and hexagonal pyramids, a truncated cone and an ellipsoid.
What size are the large transparent solids?
Each solid in the standard set has a nominal longest dimension of 100 mm. The sphere diameter, cone height and prism lengths differ from shape to shape. For a tender that lists each size, send that list with the enquiry.
