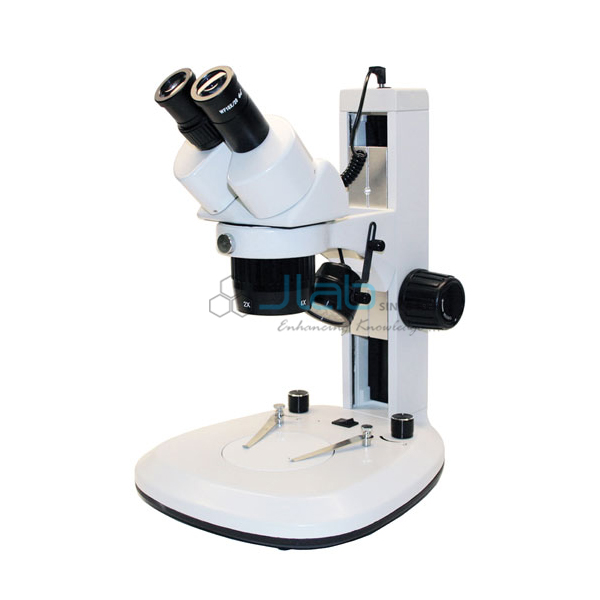

3 Way LED Light Dual Power Stereo Microscope

Product Code : JA-M-8116

Description:-

A fully coated optical system which provides sharp and clear imaging with extreme flatness and contrast.

This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments.

Specification:-

Item No.	Head	Eyepiece	Magnification	Illumination
1	Binocular	10X Wide-Field	10X and 20X	LED - Top & Bottom
2	Binocular	10X Wide-Field	10X and 30X	LED - Top & Bottom
3	Binocular	10X Wide-Field	20X and 40X	LED - Top & Bottom

Magnification	Standard magnification: 20X & 40X; 10X & 30X; or 10X & 20X The magnification can be increased or decreased with auxiliary objectives and optional eyepieces
Viewing Head	Binocular, 45° inclined and 360° rotatable.
	Interpupillary distance adjustable from 55mm-75mm. Synchronized bilateral inter-pupillary distance adjustment.
	Diopter adjustment of +/-5 on left ocular tube; right tube is fixed
Eyepiece	10X wide-field, high eyepoint
	Paired 10X/20mm (Optional eyepieces WF15X/15mm, WF20X/10mm, Various reticule eyepieces WF10X/20mm available, not included)
	The left eyepiece can be locked on with setscrew to prevent students from removing them.
Optics Body and objectives	The QFN optics body is equipped with paired lenses (1X, 2X), (1X, 3X), or (2X, 4X) for three-dimensional viewing. Magnification can be switched to the other by rotating the turret.
	Objective magnification: choice of (2X & 4X), (1X & 3X), or (1X & 2X)
	Auxiliary objectives: 0.5X/165mm(working distance), 1.5X/45mm, and 2X/30mm available (not included)
Working Distance	Standard working distance of 100mm, working distance range can be changed with auxiliary lens
Focusing Arm	Heavy duty rack and pinion focusing with slip clutch
Focusing Arm	Two focusing knobs with tension adjustment, 100mm focus distance range
Stage	Includes one 95mm glass stage plate and one 95mm reversible black/white stage plate.
	Locked-on stage clips
	2D Travelling stage available (not included)
Illumination	Top light: diagonally adjustable top incident LED light. Brightness can be continuously adjusted independently
	Bottom light: transmitted LED light. Brightness can be continuously adjusted independently
	Built in illumination system allows three ways of illumination: transmitted, incident, or dual lighting.
	Main On/off power switch. Besides, top and bottom lights can be switched on/off respectively with separate intensity control
