Coarse Aggregate Density Test Set
Product Code : JA-CL-8852

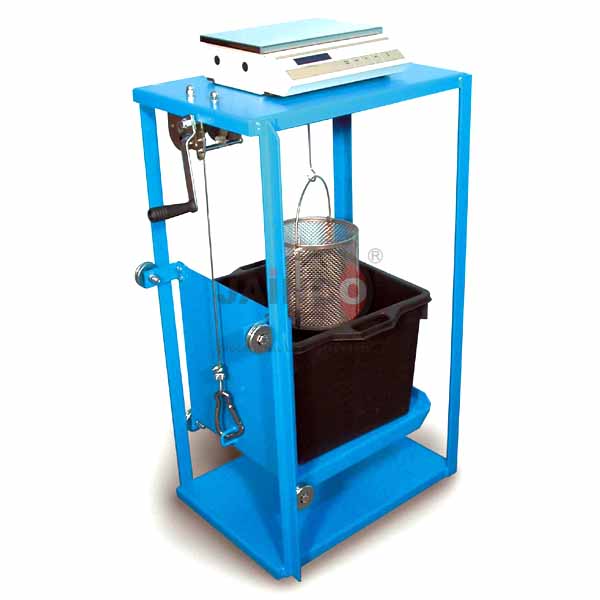

The coarse aggregate density test set is used to measure the density and specific density of coarse aggregates, with a buoyancy balance and a wire-mesh density basket suspended in a water tank. The balance has a capacity of 8000 g for aggregates between 63 mm and 5 mm and runs on 220 V AC, and the set adds an 8-inch brass sieve and a galvanized pan (SKU JA-CL-8852).
Specifications
Components and data listed for the set:
| Product | Coarse Aggregate Density Test Set |
| SKU | JA-CL-8852 |
| Use | Density and specific density of coarse aggregates; standard weighing |
| Buoyancy balance | 8000 g capacity, for aggregates between 63 mm and 5 mm |
| Power | 220 V AC, 50/60 Hz |
| Density basket | 203 mm diameter x 203 mm deep, reinforced no. 8 wire mesh |
| Suspension | Suspension hook |
| Sieve | 8 inch brass sieve, no. 4 mesh |
| Pan | 1, galvanized |
| Water tank | Approx. 400 x 400 x 330 mm (L x W x H) |
Scope of supply and ordering
The set covers the buoyancy balance, density basket with suspension hook, water tank, no. 4 brass sieve and galvanized pan as listed, supplied by JaincoLab.
Frequently asked questions
What aggregate sizes is the balance set up for?
Aggregates between 63 mm and 5 mm, with a balance capacity of 8000 g.
What size is the density basket?
203 mm in diameter and 203 mm deep, made of reinforced no. 8 wire mesh.
What power supply does the balance need?
220 V AC at 50/60 Hz.
